62.22.9 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K

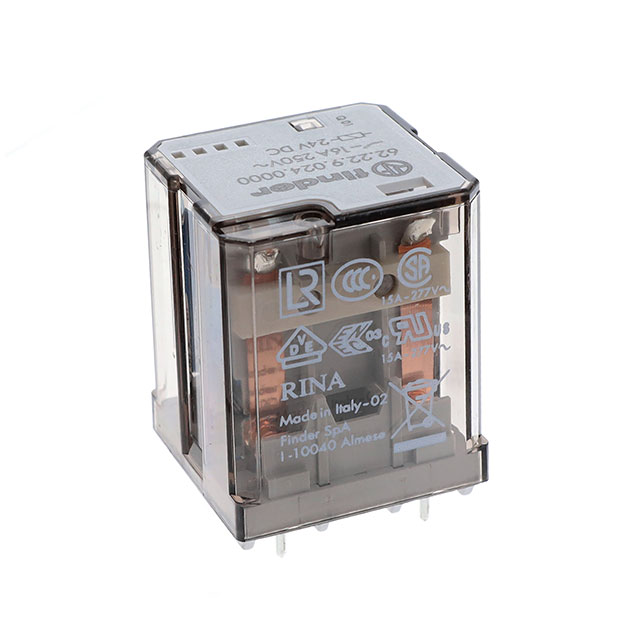

RELAY GEN PURPOSE DPDT 16A 24V
| Part | Coil Resistance | Approval Agency | Switching Voltage [Max] | Must Operate Voltage | Mounting Type | Must Release Voltage | Coil Type | Termination Style | Coil Voltage | Operate Time | Relay Type | Coil Current | Contact Form | Release Time | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 445 Ohms | CCC CSA cURus EAC ENEC RINA VDE | 400 VAC | 19.2 VDC | Through Hole | 4.8 VDC | Non Latching | PC Pin | 24 VDC | 11 ms | General Purpose | 54 mA | DPDT (2 Form C) | 4 ms | Silver Cadmium Oxide (AgCdO) | 70 °C | -40 C | 6400 VA | 16 A |
 Finder Relays, Inc. | 48 Ohms | CCC CSA cURus EAC ENEC RINA VDE | 400 VAC | 10.2 VDC | Through Hole | 2.4 VDC | Non Latching | PC Pin | 12 VDC | 11 ms | General Purpose | 250 mA | DPST-NO (2 Form A) | 4 ms | Silver Tin Oxide (AgSnO) | 70 °C | -40 C | 6400 VA | 16 A |
