9608 Series
Manufacturer: Belden Inc.
Beta
⌘K

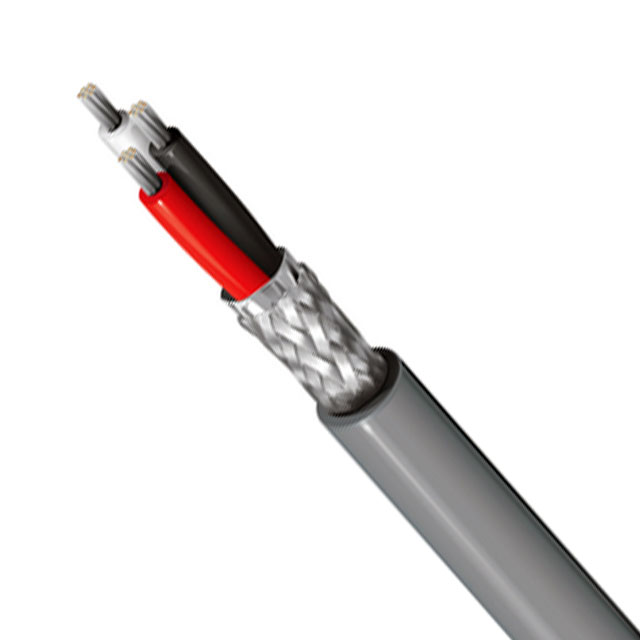

CABLE 3CON 24AWG CHROM SHLD
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Number of Conductors | Wire Gauge | Voltage | Length | Length | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket Color | Conductor Insulation | Usage | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | UL Style 2464 | 3 | 24 AWG | 300 VDC | 152.4 m | 500 ft | Braid Foil | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | Chrome | Poly-Vinyl Chloride (PVC) | Computer | Copper Tinned | 0.19 in | 4.83 mm | Multi-Conductor | 7 | 32 AWG |
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 80 °C | -30 ░C | UL Style 2464 | 3 | 24 AWG | 300 VDC | 304.8 m | 1000 ft | Braid Foil | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | Chrome | Poly-Vinyl Chloride (PVC) | Computer | Copper Tinned | 0.19 in | 4.83 mm | Multi-Conductor | 7 | 32 AWG |
