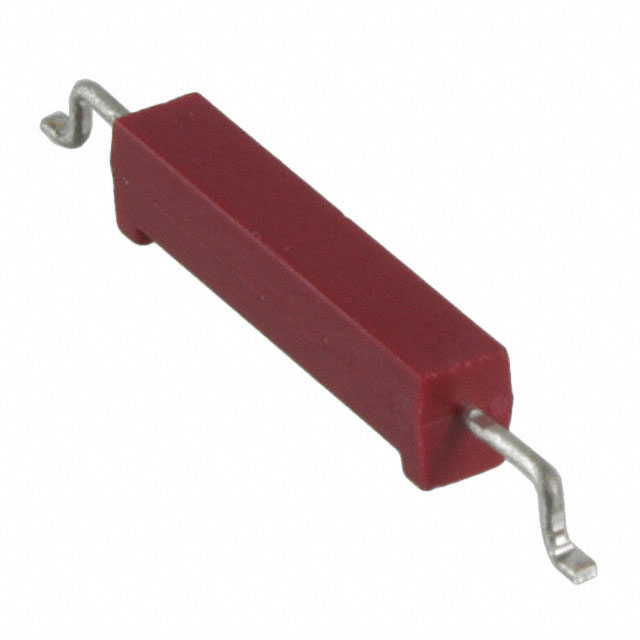

CT10 Series

Catalog

SWITCH REED SPST-NO 500MA 140V

Part	Height Above Board [z]	Height Above Board [z]	Current - Carry	Size - Body [y]	Size - Body [z]	Size - Body [y]	Size - Body [x]	Size - Body [z]	Size - Body [x]	Type	Length - Overall [x]	Length - Overall [x]	Power - Rated	Voltage - Switching DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current - Switching	Voltage - Switching AC [custom]	Termination Style	Mounting Type	Operate Range [Max]	Operate Range [Min]	Length - Overall	Length - Overall	Release Range [Max]	Release Range [Min]

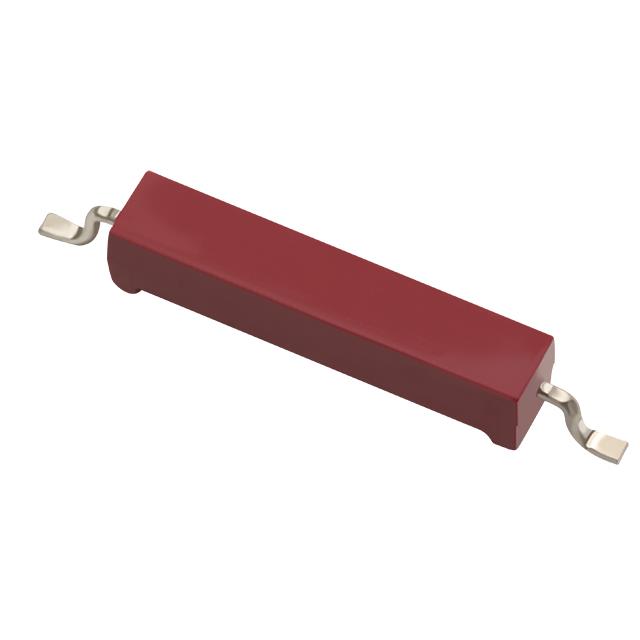

COTO TECHNOLOGY CT10-1530-G1	2.92 mm	0.115 in	500 mA	2.41 mm	0.115 "	0.095 "	11.63 mm	2.92 mm	0.458 "	Molded Body Reed	16.26 mm	0.64 in	10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Gull Wing	Surface Mount	30 AT	15 AT
COTO TECHNOLOGY CT10-1020-G1	2.92 mm	0.115 in	500 mA	2.41 mm	0.115 "	0.095 "	11.63 mm	2.92 mm	0.458 "	Molded Body Reed	16.26 mm	0.64 in	10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Gull Wing	Surface Mount	20 AT	10 AT

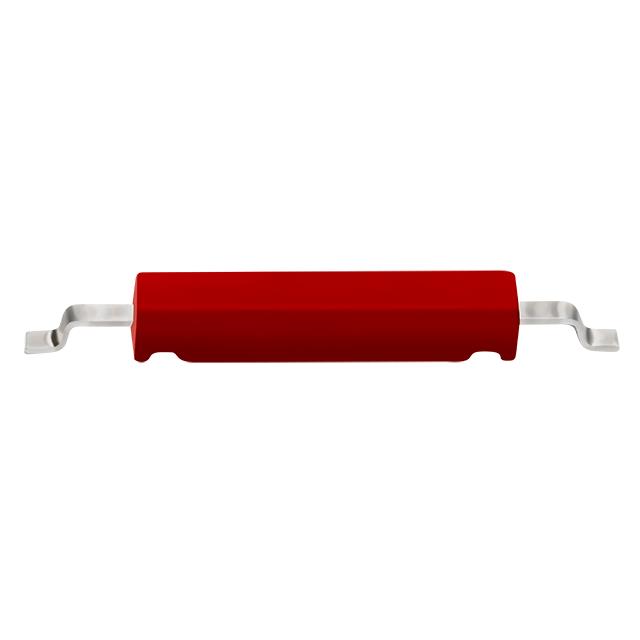

COTO TECHNOLOGY CT10-1540-G4	2.54 mm	0.1 in	500 mA	2.29 mm	0.095 "	0.09 "	12.83 mm	2.41 mm	0.505 "	Molded Body Reed			10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Gull Wing	Surface Mount	40 AT	15 AT	0.77 in	19.56 mm
COTO TECHNOLOGY CT10-1540-G2	2.92 mm	0.115 in	500 mA	2.41 mm	0.115 "	0.095 "	11.63 mm	2.92 mm	0.458 "	Molded Body Reed			10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Gull Wing	Surface Mount	40 AT	15 AT	0.77 in	19.56 mm
COTO TECHNOLOGY CT10-1025-G1	2.92 mm	0.115 in	500 mA	2.41 mm	0.115 "	0.095 "	11.63 mm	2.92 mm	0.458 "	Molded Body Reed	16.26 mm	0.64 in	10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Gull Wing	Surface Mount	25 AT	10 AT
COTO TECHNOLOGY CT10-1030-G1	2.92 mm	0.115 in	500 mA	2.41 mm	0.115 "	0.095 "	11.63 mm	2.92 mm	0.458 "	Molded Body Reed	16.26 mm	0.64 in	10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Gull Wing	Surface Mount	30 AT	10 AT

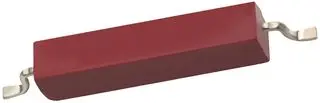

COTO TECHNOLOGY CT10-1040-G1	2.92 mm	0.115 in	500 mA	2.41 mm	0.115 "	0.095 "	11.63 mm	2.92 mm	0.458 "	Molded Body Reed	16.26 mm	0.64 in	10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Gull Wing	Surface Mount	40 AT	10 AT			35 AT	3

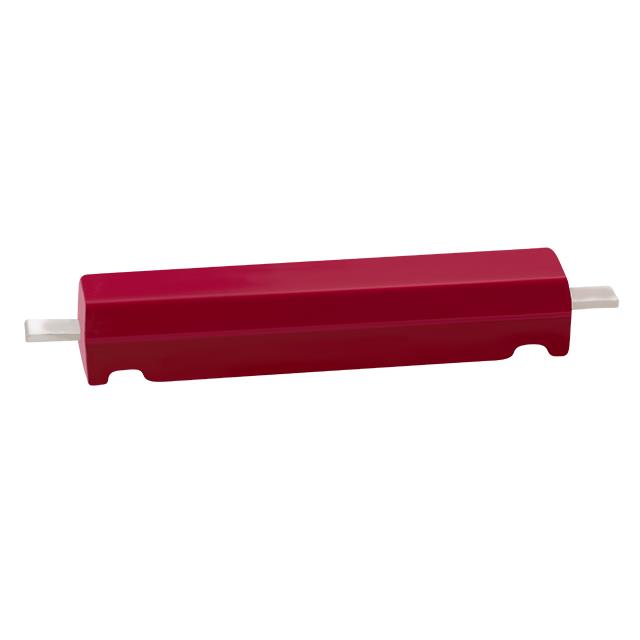

COTO TECHNOLOGY CT10-1040-A2			500 mA	2.41 mm	0.095 "	0.095 "	12.83 mm	2.41 mm	0.505 "	Molded Body Reed			10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Axial Flat	Surface Mount	40 AT	10 AT	0.614 in	15.6 mm	35 AT	3
COTO TECHNOLOGY CT10-1030-G4	2.54 mm	0.1 in	500 mA	2.29 mm	0.095 "	0.09 "	12.83 mm	2.41 mm	0.505 "	Molded Body Reed			10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Gull Wing	Surface Mount	30 AT	10 AT	0.77 in	19.56 mm
COTO TECHNOLOGY CT10-1540-G1	2.92 mm	0.115 in	500 mA	2.41 mm	0.115 "	0.095 "	11.63 mm	2.92 mm	0.458 "	Molded Body Reed	16.26 mm	0.64 in	10 W	200 V	125 °C	-40 C	SPST-NO	500 mA	140 V	Gull Wing	Surface Mount	40 AT	15 AT
