1577621 Series

Catalog

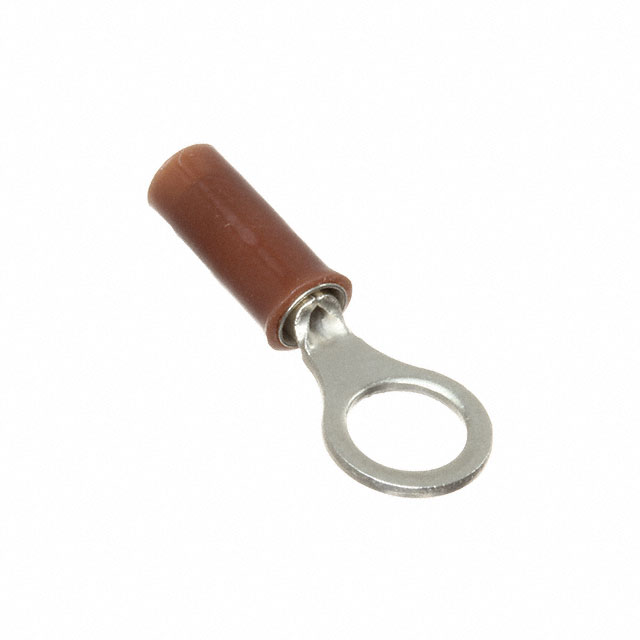

CONN RING CIRC 22-24AWG #10

Part	Color	Contact Finish	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Termination	Terminal Type	Thickness	Thickness	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Insulation Diameter	Insulation Diameter [Min]	Insulation Diameter [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Features	Mounting Type	Material - Insulation
TE Connectivity Raychem Cable Protection 1577621-1	Brown	Nickel	0.839 "	21.3 mm	10 Stud	Crimp	Circular	0.81 mm	0.032 in	Copper	7.14 mm	0.281 in	Insulated	0.89 mm 1.91 mm	0.035 in	0.075 in	24 AWG	22 AWG	Serrated Termination	Free Hanging (In-Line)	Polyetheretherketone (PEEK)
