NHD-2.23 Series

Catalog

OLED GRAPH MULTIFONT YEL 2.23

Part	Viewing Area [y]	Viewing Area [x]	Graphics Color	Interface	Diagonal Screen Size	Diagonal Screen Size	Controller Type	Display Type	Background Color	Dot Pixels [y]	Dot Pixels [x]	Dot Pitch [y]	Dot Pitch [x]	Dot Size [x]	Dot Size [y]

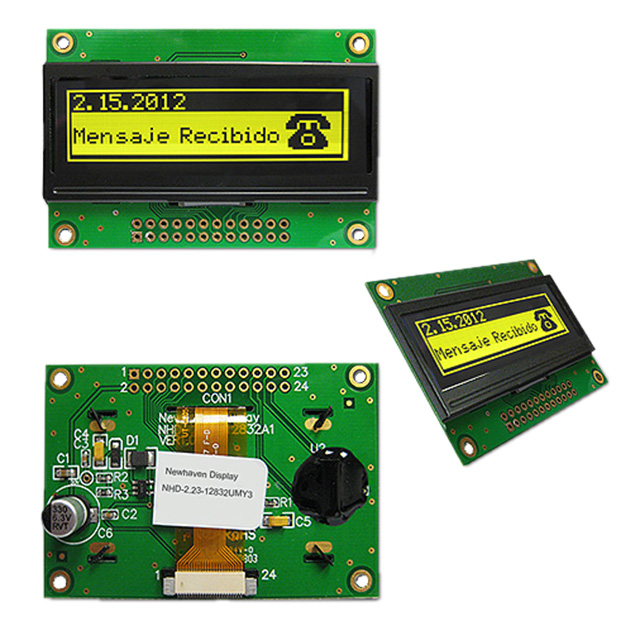

Newhaven Display Intl NHD-2.23-12832UMY3	18 mm	60 mm	Yellow	I2C Parallel 8-Bit SPI	2.23 in	56.64 mm	SSD1305	OLED - Passive Matrix	Black	32	128

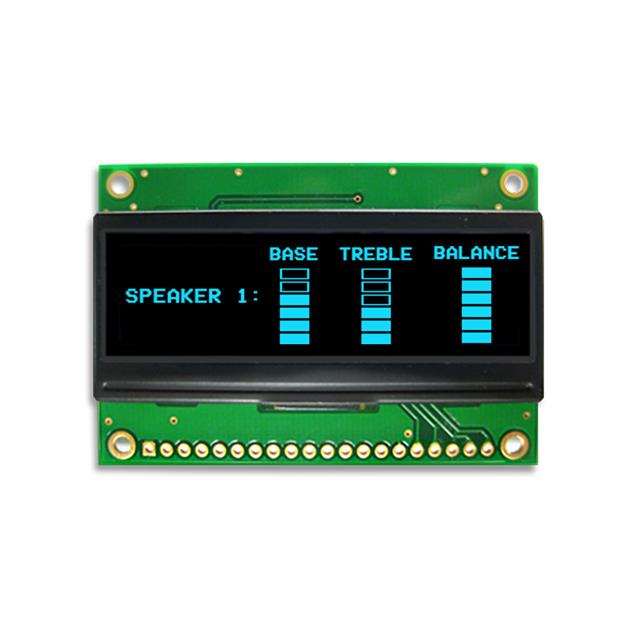

Newhaven Display Intl NHD-2.23-12832UCB3	18 mm	60 mm	Blue	I2C Parallel Serial	2.23 in	56.64 mm	SSD1305	OLED - Passive Matrix	Black	32	128	0.41 mm	0.43 mm	0.41 mm	0.39 mm

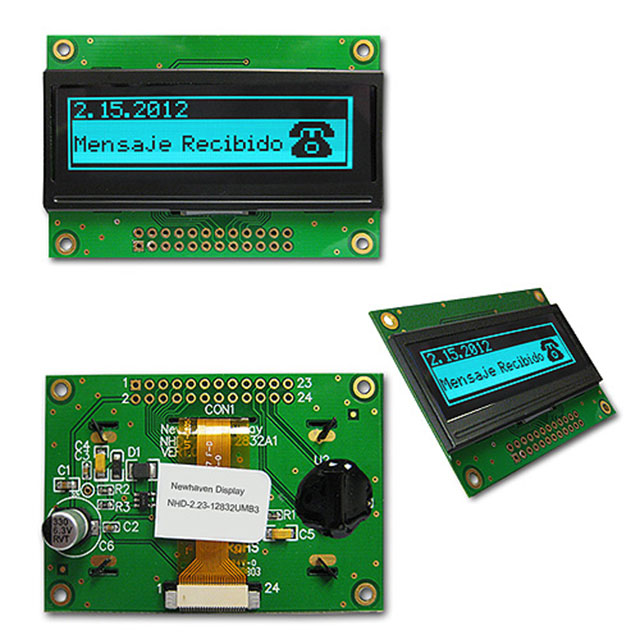

Newhaven Display Intl NHD-2.23-12832UMB3	18 mm	60 mm	Blue	I2C Parallel 8-Bit SPI	2.23 in	56.64 mm	SSD1305	OLED - Passive Matrix	Black	32	128

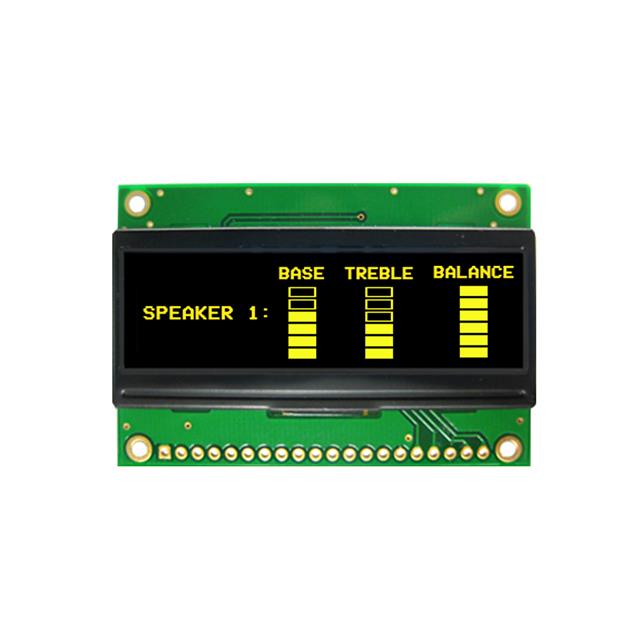

Newhaven Display Intl NHD-2.23-12832UCY3	18 mm	60 mm	Yellow	I2C Parallel 8-Bit SPI	2.23 in	56.64 mm	SSD1305	OLED - Passive Matrix	Black	32	128	0.41 mm	0.43 mm	0.41 mm	0.39 mm

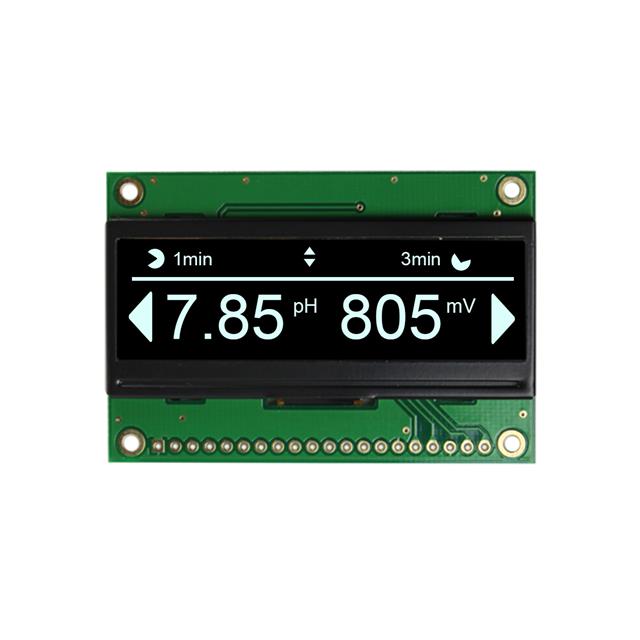

Newhaven Display Intl NHD-2.23-12832UCW3	18 mm	60 mm	White	Parallel Serial	2.23 in	56.64 mm	SSD1305	OLED - Passive Matrix		32	128
