895-100 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 100POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions	Contact Finish	Number of Positions/Bay/Row	Number of Rows [custom]	Contact Material	Pitch	Pitch	Mounting Type	Read Out	Gender	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Termination	Features

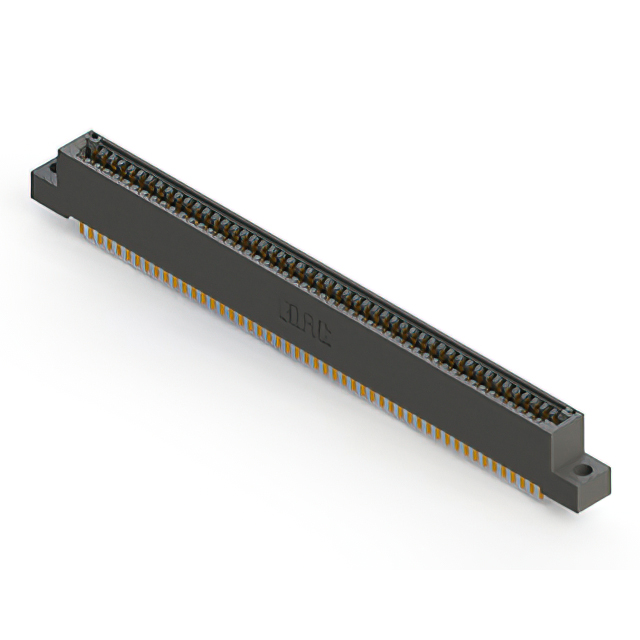

EDAC Inc. 895-100-521-204	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Through Hole	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 895-100-558-812	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Right Angle Through Hole	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 895-100-500-503	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Through Hole	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)

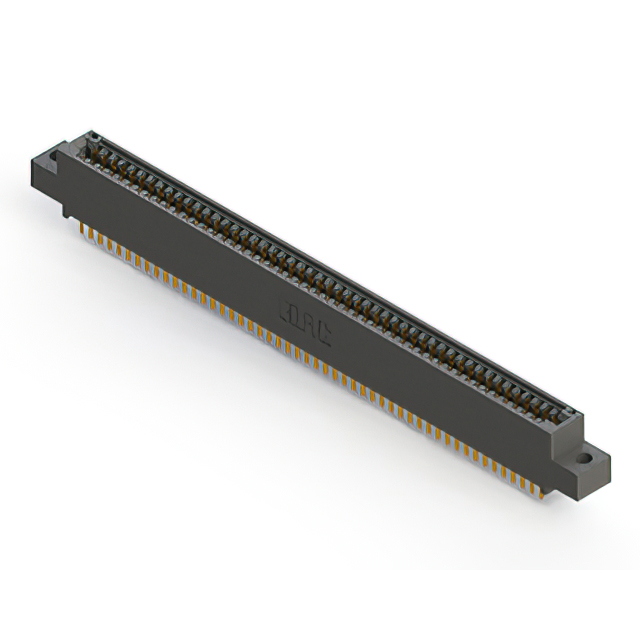

EDAC Inc. 895-100-521-504	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge		0.156 "	3.96 mm	100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Through Hole	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 895-100-556-512	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	Side Mount Opening Unthreaded	0.128 "	3.25 mm	100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Board Edge Straddle Mount	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder	Card Extender
EDAC Inc. 895-100-558-502	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge		0.128 "	3.25 mm	100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Right Angle Through Hole	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 895-100-500-508	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening			100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Through Hole	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)
EDAC Inc. 895-100-558-203	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	Floating Bobbin Flush Mount	0.116 "	2.95 mm	100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Right Angle Through Hole	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 895-100-540-201	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge				100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Through Hole	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap
EDAC Inc. 895-100-540-803	2	Polyphenylene Sulfide (PPS)	Black	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	100	Gold	50	2	Copper Alloy	0.1 "	2.54 mm	Through Hole	Dual	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Wire Wrap
