1505F Series
Manufacturer: Belden Inc.
Beta
⌘K

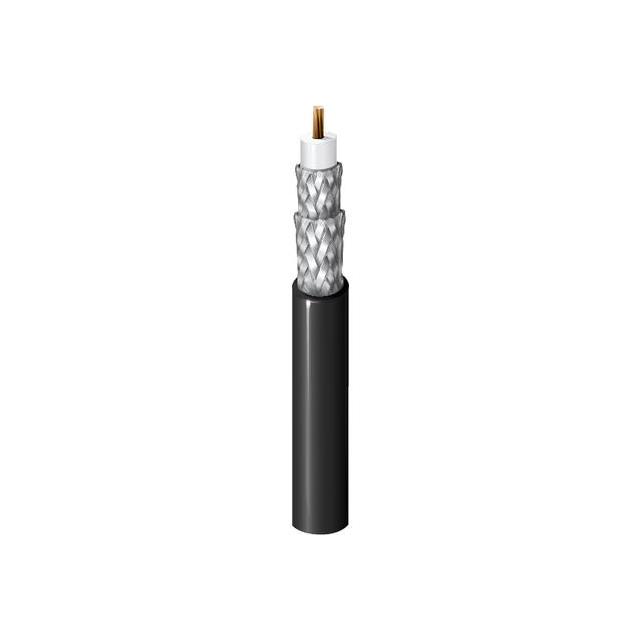

CABLE COAXIAL RG-59 22AWG 1000'
| Part | Shield Coverage | VoP, Velocity of Propagation | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Jacket (Insulation) Material | Cable Group | Jacket Color | Shield Type | Length [x] | Length [x] | Usage | Cable Type | Impedance | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % | 80 | Copper Bare | 0.145 in | 3.68 mm | Foam Polyethylene (FPE) | 75 ░C | -35 °C | Copper Bare | Poly-Vinyl Chloride (PVC) | RG-59 | Green | Double Braid | 304.8 m | 1000 ft | Video | Coaxial | 75 Ohms | 22 AWG |
Belden Inc. | 95 % | 80 | Copper Bare | 0.145 in | 3.68 mm | Foam Polyethylene (FPE) | 75 ░C | -35 °C | Copper Bare | Poly-Vinyl Chloride (PVC) | RG-59 | Black | Double Braid | 304.8 m | 1000 ft | Video | Coaxial | 75 Ohms | 22 AWG |
Belden Inc. | 95 % | 80 | Copper Bare | 0.145 in | 3.68 mm | Foam Polyethylene (FPE) | 75 ░C | -35 °C | Copper Bare | Poly-Vinyl Chloride (PVC) | RG-59 | Violet | Double Braid | 304.8 m | 1000 ft | Video | Coaxial | 75 Ohms | 22 AWG |
 Belden Inc. | 95 % | 80 | Copper Bare | 0.145 in | 3.68 mm | Foam Polyethylene (FPE) | 75 ░C | -35 °C | Copper Bare | Poly-Vinyl Chloride (PVC) | RG-59 | Red | Double Braid | 304.8 m | 1000 ft | Video | Coaxial | 75 Ohms | 22 AWG |
