NCV7546 Series

FLEXMOS™ Six Channel Half-Bridge MOSFET Pre-Driver for Motor Control Application

Catalog

FLEXMOS™ Six Channel Half-Bridge MOSFET Pre-Driver for Motor Control Application

Part	Interface	Voltage - Load [Max]	Voltage - Load [Min]	Supplier Device Package	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Motor Type - AC, DC	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Motor Type - Stepper	Output Configuration	Technology

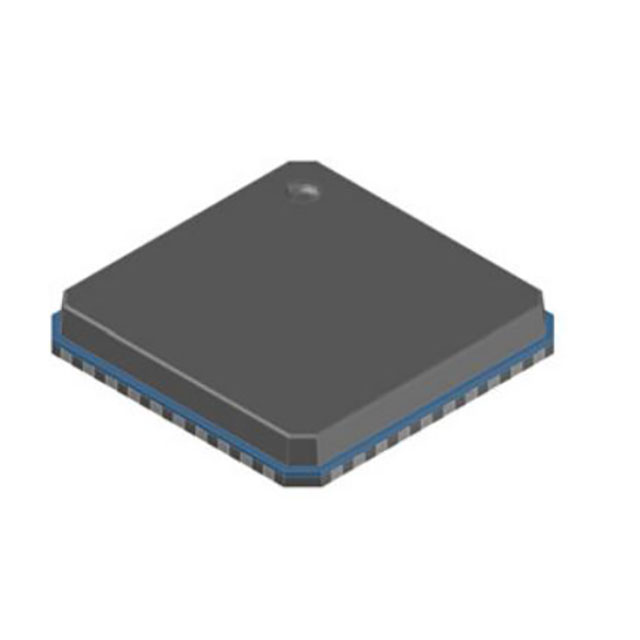

ON Semiconductor NCV7546MWTXG	PWM SPI	18 V	7 V	40-QFNW (6x6)	Surface Mount	4.5 V	5.5 V	Controller - Speed	Brushed DC	40-VFQFN Exposed Pad	-40 °C	125 °C	Automotive	Bipolar	Pre-Driver - Half Bridge (6)	NMOS

Catalog

FLEXMOS™ Six Channel Half-Bridge MOSFET Pre-Driver for Motor Control Application

Key Features

• 6 Half−bridge Pre−drivers

• Integrated charge pump

• Open Load Protection

• Over Load Protection

• Programmable Slew Rate Control

• QFN Packaging

Description

The NCV7546 programmable six channel half−bridge MOSFET pre−driver is one of a family of FLEXMOS automotive grade products for driving logic−level NMOS FETs. The product is controllable by a combination of serial SPI and CMOS−compatible parallel inputs. The pre-driver offers advanced control and protection of the MOSFET. The device and application diagnostic data is communicated via SPI.
