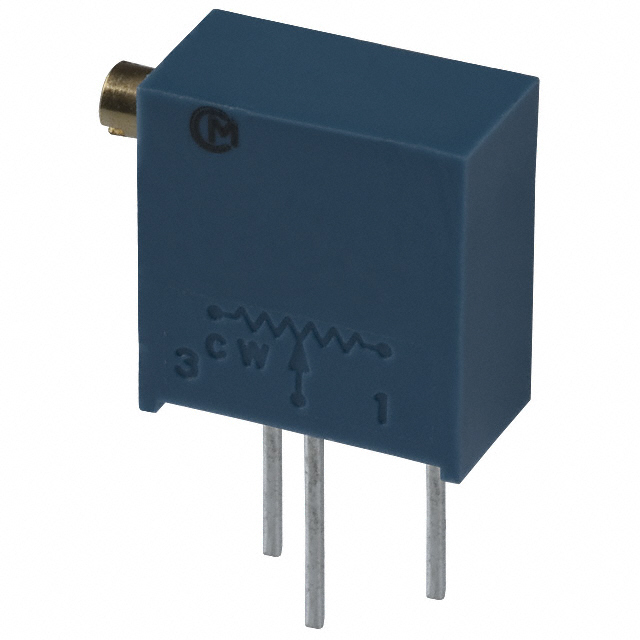

PV36Z Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRIMMER 100 OHM 0.5W PC PIN SIDE
| Part | Adjustment Type | Resistive Material | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Power (Watts) | Power (Watts) | Termination Style | Number of Turns | Temperature Coefficient | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 150 ppm/°C | 100 Ohms |
Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 100 ppm/°C | |
Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 150 ppm/°C | 10 Ohms |
Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 100 ppm/°C | 100 kOhms |
Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 100 ppm/°C | 50000 Ohms |
Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 100 ppm/°C | 2 MOhms |
Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 100 ppm/°C | 25 kOhms |
Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 100 ppm/°C | 1000 Ohms |
Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 150 ppm/°C | 20 Ohms |
Bourns Inc. | Side Adjustment | Cermet | Through Hole | 10 mm | 0.197 " | 0.394 in | 5 mm | 10 % | 0.5 W | 0.5 W | PC Pins | 25 | 100 ppm/°C | 0.5 kOhms |
