EMI813X Series

Common Mode Filter with ESD Protection

Catalog

Common Mode Filter with ESD Protection

Part	Height (Max) [Max]	Height (Max) [Max]	Features	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Max) [Max]	Number of Lines	DC Resistance (DCR) (Max)	Mounting Type

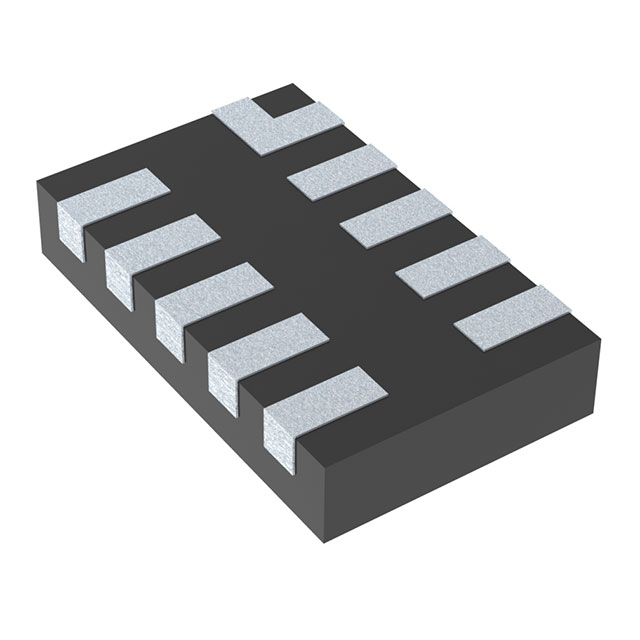

ON Semiconductor EMI8132MUTAG	0.5 mm	0.02 in	TVS Diode ESD Protection	10-XFDFN	85 °C	-40 °C	1.35 mm	0.087 in	0.053 in	2.2 mm	100 mA	4	6 Ohm	Surface Mount

Catalog

Common Mode Filter with ESD Protection

Key Features

• Total Insertion Loss DMloss <3.7dB at 2.5GHz

• Large Differential Mode Cutoff Frequency f3dB >2.5GHz

• High Common Mode Stop Band Attenuation 30dB at 750MHz

• Low Channel Resistance 6.0 ohm

Description

The EMI813x is a family of Common Mode Filters with integrated ESD protection. Differetial signaling IOs can now have both common mode filtering and ESD protection in one package.
