R19140 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

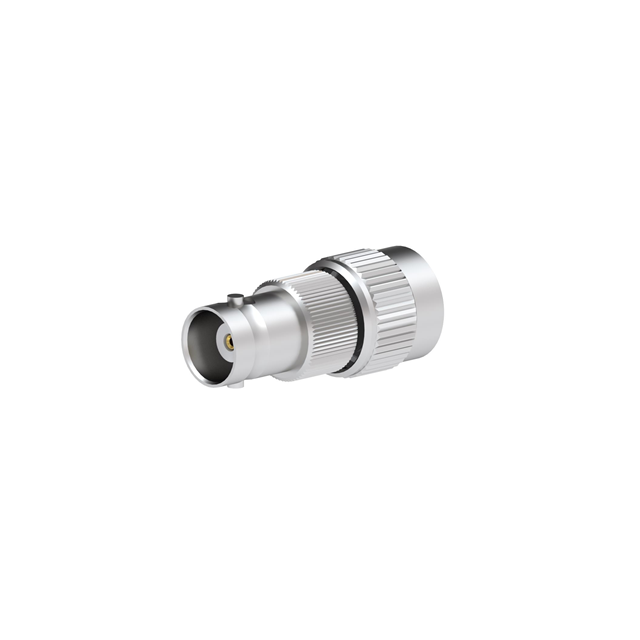

BNC FEMALE - TNC MALE STRAIGHT A
| Part | Dielectric Material | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Fastening Type | Fastening Type | Impedance | Frequency - Max [Max] | Convert To (Adapter End) | Mounting Type | Adapter Type | Conversion Type | Style | Center Contact Plating | Adapter Series | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Nickel | Brass | -65 ░C | 165 °C | Beryllium Copper | Threaded | Bayonet Lock | 50 Ohms | 4 GHz | TNC Plug Male Pin | Free Hanging (In-Line) | Plug to Jack | Between Series | Straight | Gold | BNC to TNC | BNC Jack Female Socket |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Nickel | Brass | -65 ░C | 165 °C | Beryllium Copper | Threaded | Bayonet Lock | 50 Ohms | 4 GHz | Female Socket TNC Jack | Free Hanging (In-Line) | Plug to Jack | Between Series | Straight | Gold | BNC to TNC | BNC Plug Male Pin |
