2842156 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

20P,2MM,BRK HDR,DRRT,2.8,0.76AU,

Part	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Shape	Number of Positions	Contact Type	Current Rating (Amps)	Mounting Type	Features	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Termination	Contact Finish - Mating	Material Flammability Rating	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Material	Connector Type	Number of Positions
TE Connectivity Raychem Cable Protection 1-2842156-0	2	All	1.5 mm	0.059 "	Square	20	Male Pin	2 A	Through Hole Right Angle	Pick and Place	Unshrouded	0.079 in	2 mm	Tin	2 çm	78.7 çin	0.11 in	2.79 mm	30 Áin	0.76 Ám	Push-Pull	0.079 in	2 mm	Thermoplastic	Solder	Gold	UL94 V-0	125 VAC	125 °C	-40 °C	4 mm	0.157 in	Black	Copper Alloy	Breakaway Header
TE Connectivity Raychem Cable Protection 2842156-8	2	All	1.5 mm	0.059 "	Square		Male Pin	2 A	Through Hole Right Angle	Pick and Place	Unshrouded	0.079 in	2 mm	Tin	2 çm	78.7 çin	0.11 in	2.79 mm	30 Áin	0.76 Ám	Push-Pull	0.079 in	2 mm	Thermoplastic	Solder	Gold	UL94 V-0	125 VAC	125 °C	-40 °C	4 mm	0.157 in	Black	Copper Alloy	Breakaway Header	16
TE Connectivity Raychem Cable Protection 2842156-5	2	All	1.5 mm	0.059 "	Square	10	Male Pin	2 A	Through Hole Right Angle	Pick and Place	Unshrouded	0.079 in	2 mm	Tin	2 çm	78.7 çin	0.11 in	2.79 mm	30 Áin	0.76 Ám	Push-Pull	0.079 in	2 mm	Thermoplastic	Solder	Gold	UL94 V-0	125 VAC	125 °C	-40 °C	4 mm	0.157 in	Black	Copper Alloy	Breakaway Header

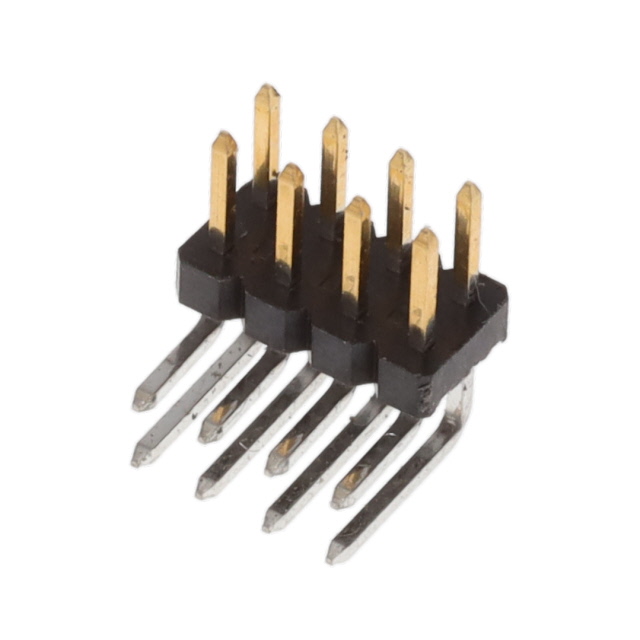

TE Connectivity Raychem Cable Protection 2842156-4	2	All	1.5 mm	0.059 "	Square	8	Male Pin	2 A	Through Hole Right Angle	Pick and Place	Unshrouded	0.079 in	2 mm	Tin	2 çm	78.7 çin	0.11 in	2.79 mm	30 Áin	0.76 Ám	Push-Pull	0.079 in	2 mm	Thermoplastic	Solder	Gold	UL94 V-0	125 VAC	125 °C	-40 °C	4 mm	0.157 in	Black	Copper Alloy	Breakaway Header
TE Connectivity Raychem Cable Protection 2842156-7	2	All	1.5 mm	0.059 "	Square	14	Male Pin	2 A	Through Hole Right Angle	Pick and Place	Unshrouded	0.079 in	2 mm	Tin	2 çm	78.7 çin	0.11 in	2.79 mm	30 Áin	0.76 Ám	Push-Pull	0.079 in	2 mm	Thermoplastic	Solder	Gold	UL94 V-0	125 VAC	125 °C	-40 °C	4 mm	0.157 in	Black	Copper Alloy	Breakaway Header
