IL-G-2P Series

Catalog

CONN HEADER VERT 2POS 2.5MM

Part	Mated Stacking Heights	Insulation Color	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Positions	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Current Rating (Amps)	Number of Rows	Insulation Height	Insulation Height	Contact Material	Contact Shape	Material Flammability Rating	Style	Insulation Material	Connector Type	Shrouding	Termination	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
JAE Electronics IL-G-2P-S3T2-SA	10 mm	Brown	Tin	85 °C	-40 C	Through Hole	2	All	9.6 mm	0.378 in	2.5 mm	0.098 in	Friction Lock	Male Pin	3 A	1	0.28 in	7.1 mm	Brass	Square	UL94 V-0	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Header	Shrouded - 1 Wall	Solder	0.138 in	3.5 mm	4 mm	0.157 in

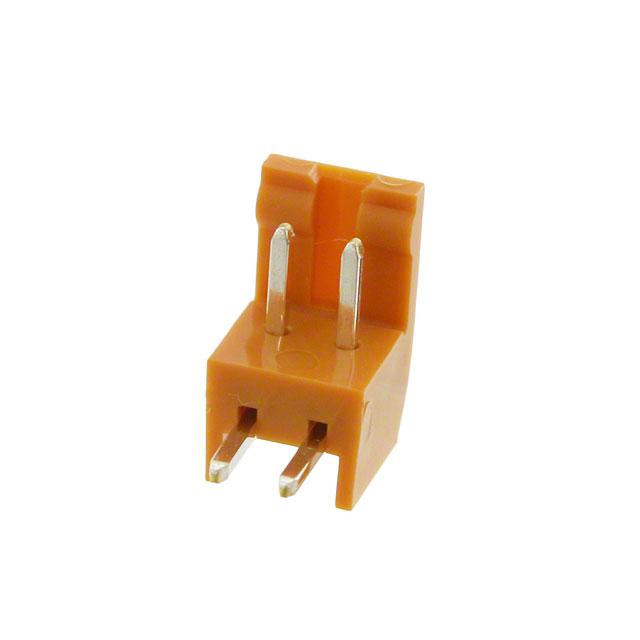

JAE Electronics IL-G-2P-S3L2-SA		Brown	Tin	85 °C	-40 C	Right Angle Through Hole	2	All			2.5 mm	0.098 in	Friction Lock	Male Pin	3 A	1			Brass	Square	UL94 V-0	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Header	Shrouded - 1 Wall	Solder	0.138 in	3.5 mm	4 mm	0.157 in	0.236 "	6 mm
JAE Electronics IL-G-2P-S3L2-SA-1		Brown		85 °C	-40 C	Right Angle Through Hole	2	All			2.5 mm	0.098 in	Friction Lock	Male Pin	3 A	1			Brass	Square	UL94 V-0	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Header	Shrouded - 1 Wall	Solder	0.138 in	3.5 mm	4 mm	0.157 in	0.236 "	6 mm	Gold	3.9 µin	0.099 µm
