D4C Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 250V
| Part | Actuator Type | Mechanical Life | Current Rating (Amps) | Ingress Protection | Electrical Life | Termination Style | Release Force | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Voltage Rating - AC | Mounting Type | Switch Function | Differential Travel | Overtravel | Circuit | Voltage Rating - DC | Pretravel | Features | Pretravel | Operating Force | Operating Position | Operating Position | Differential Travel | Overtravel | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

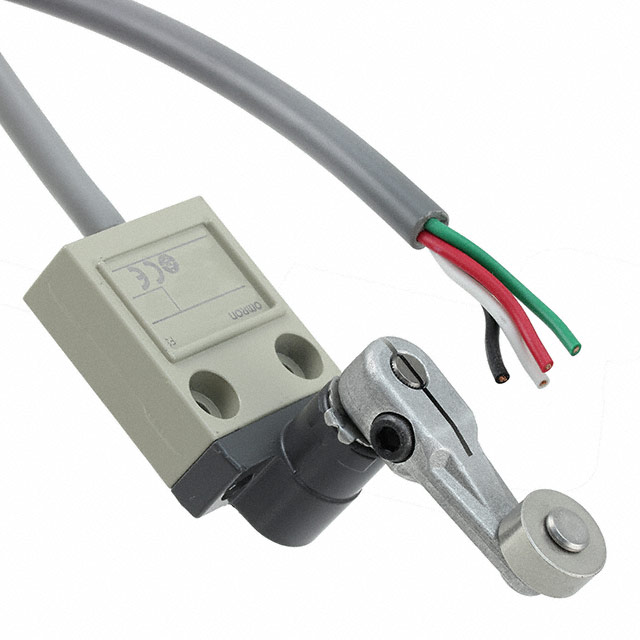

 Omron Electronics Inc-EMC Div | Roller Side Rotary | 10000000 Cycles | 4 A 5 A | IP67 - Dust Tight Waterproof | 200000 Cycles | Cable Leads | 150 gf | -10 °C | 158 °F | 250 V | Chassis Mount | On-Mom | 3 ° | 50 ° | SPDT | 30 V | 10 ° | Cable Length 5m | |||||||
Omron Electronics Inc-EMC Div | Roller Side Rotary | 10000000 Cycles | 100 mA | IP67 - Dust Tight Waterproof | 200000 Cycles | Cable Leads | 150 gf | -10 °C | 158 °F | 125 V | Chassis Mount | On-Mom | 3 ° | 50 ° | SPDT | 30 V | 10 ° | Oil Resistant Cable 3m | |||||||

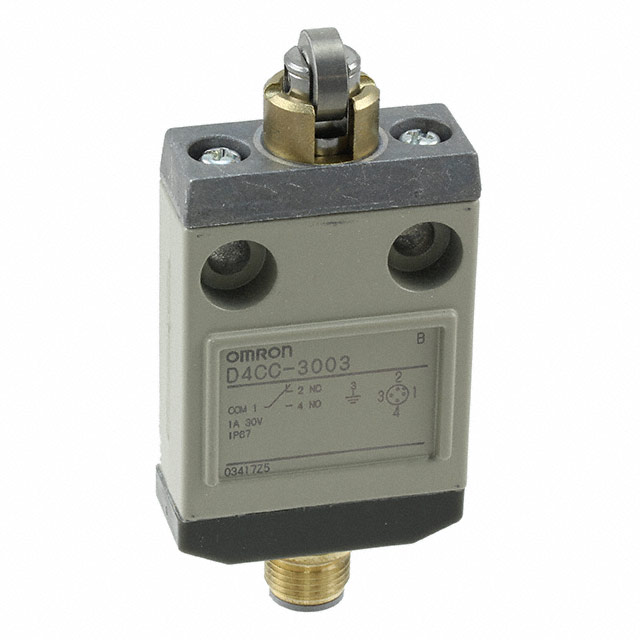

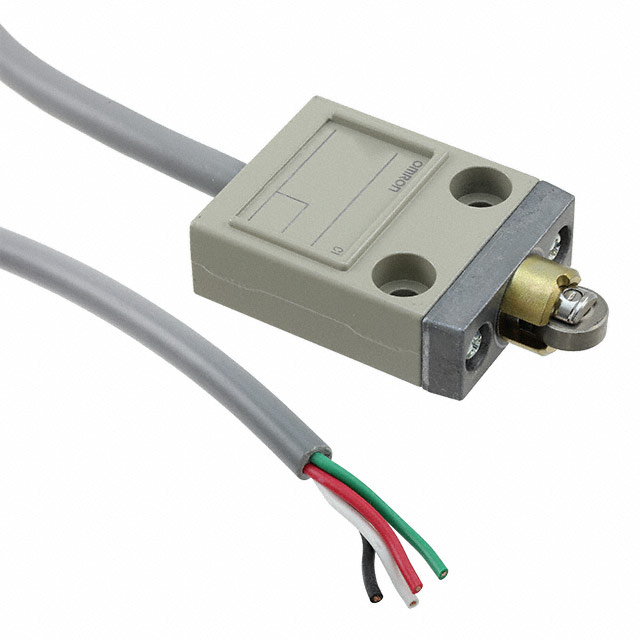

 Omron Electronics Inc-EMC Div | Roller Plunger | 10000000 Cycles | 4 A | IP67 - Dust Tight Waterproof | 200000 Cycles | Cable Leads | 450 gf | -10 °C | 158 °F | Chassis Mount | On-Mom | 0.008 in | 0.118 in | SPDT | 30 V | 0.071 in | Status Indicator | 1.8 mm | 1200 gf | 1.122 in | 28.5 mm | 0.2 mm | 3 mm | 3 m | |

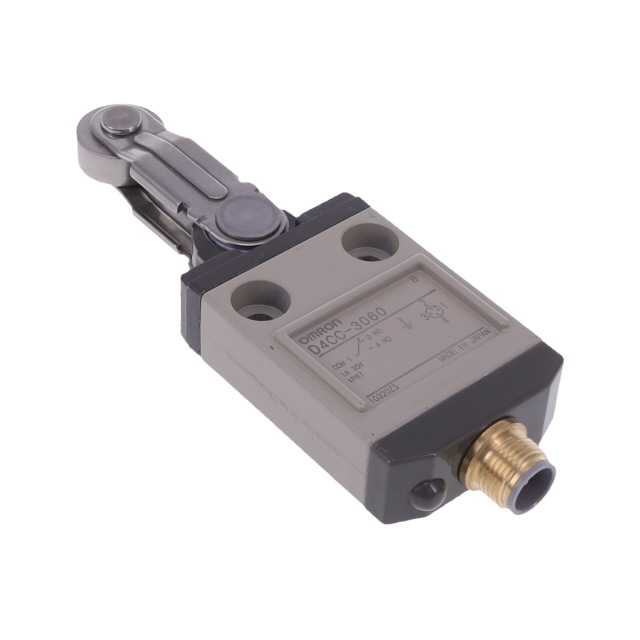

 Omron Electronics Inc-EMC Div | Lever Roller | 10000000 Cycles | 1 A | IP67 - Dust Tight Waterproof | 200000 Cycles | Connector | 150 gf | -10 °C | 158 °F | Chassis Mount | On-Mom | 3 ° | 50 ° | SPDT | 30 V | 10 ° | 0.68 kgf | ||||||||

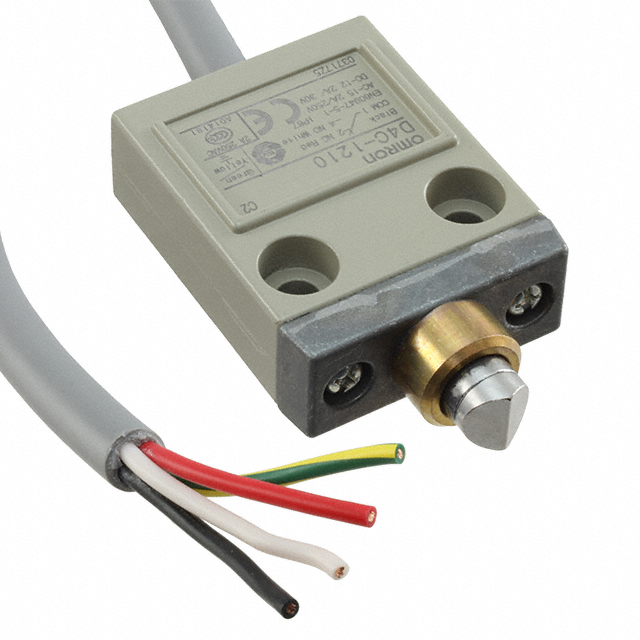

 Omron Electronics Inc-EMC Div | Bevel Plunger | 10000000 Cycles | 4 A 5 A | IP67 - Dust Tight Waterproof | 200000 Cycles | Cable Leads | 450 gf | -10 °C | 158 °F | 250 V | Chassis Mount | On-Mom | 0.008 in | 0.118 in | SPDT | 30 V | 0.071 in | Oil Resistant Cable 3m | 1.8 mm | 1200 gf | 1.122 in | 28.5 mm | 0.2 mm | 3 mm | |
 Omron Electronics Inc-EMC Div | Cross Roller Plunger | 10000000 Cycles | 1 A | IP67 - Dust Tight Waterproof | 200000 Cycles | Connector | 450 gf | -10 °C | 158 °F | Chassis Mount | On-Mom | 0.008 in | 0.118 in | SPDT | 30 V | 0.071 in | 1.8 mm | 1200 gf | 1.122 in | 28.5 mm | 0.2 mm | 3 mm | |||
Omron Electronics Inc-EMC Div | Cross Roller Plunger | 10000000 Cycles | 100 mA | IP67 - Dust Tight Waterproof | 200000 Cycles | Cable Leads | 450 gf | -10 °C | 158 °F | 125 V | Chassis Mount | On-Mom | 0.008 in | 0.118 in | SPDT | 30 V | 0.071 in | Oil Resistant Cable 5m | 1.8 mm | 1800 gf | 1.35 in | 34.3 mm | 0.2 mm | 3 mm | |

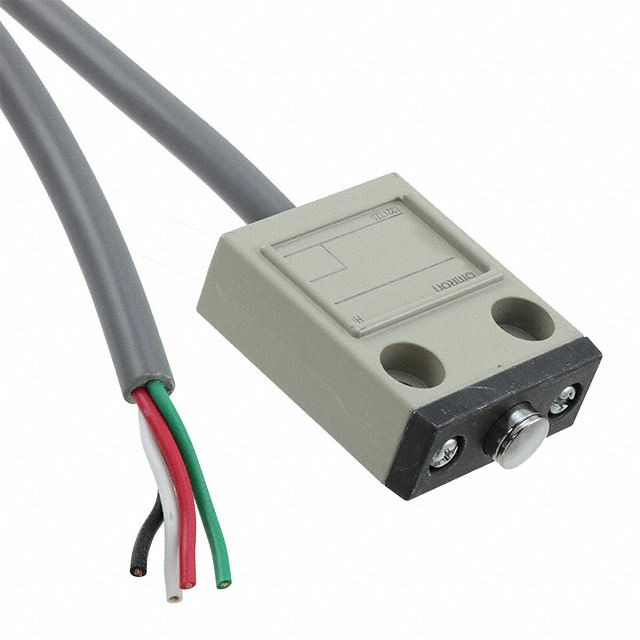

 Omron Electronics Inc-EMC Div | Round (Pin Plunger) | 10000000 Cycles | 4 A 5 A | IP67 - Dust Tight Waterproof | 200000 Cycles | Cable Leads | 450 gf | -10 °C | 158 °F | 250 V | Chassis Mount | On-Mom | 0.008 in | 0.118 in | SPDT | 30 V | 0.071 in | 1.8 mm | 1200 gf | 0.618 in | 15.7 mm | 0.2 mm | 3 mm | ||
Omron Electronics Inc-EMC Div | Roller Side Rotary | 10000000 Cycles | 100 mA | IP67 - Dust Tight Waterproof | 200000 Cycles | Cable Leads | 150 gf | -10 °C | 158 °F | 125 V | Chassis Mount | On-Mom | 3 ° | 50 ° | SPDT | 30 V | 10 ° | 3 m | |||||||
 Omron Electronics Inc-EMC Div | Roller Plunger | 10000000 Cycles | 4 A | IP67 - Dust Tight Waterproof | 200000 Cycles | Cable Leads | 450 gf | -10 °C | 158 °F | Chassis Mount | On-Mom | 0.008 in | 0.118 in | SPDT | 30 V | 0.071 in | Oil Resistant Cable 5m Status Indicator | 1.8 mm | 1800 gf | 1.35 in | 34.3 mm | 0.2 mm | 3 mm |
