CFS-0403 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Body Material	Length [custom]	Length	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Termination Style	Actuator Type	Current Rating (Amps)	Contact Material	Height Above Board [z]	Height Above Board [z]	Number of Positions	Pitch	Pitch	Mounting Type	Circuit	Voltage Rating	Actuator Level

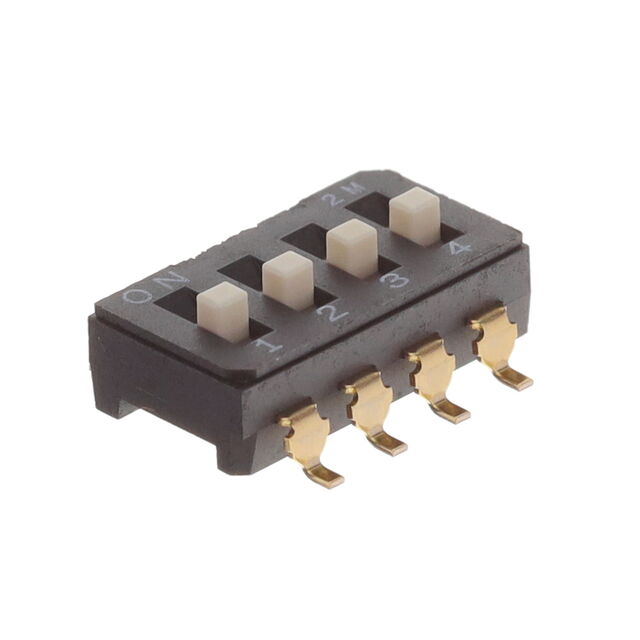

Nidec Components Corporation CFS-0403TB	Polyphenylene Sulfide (PPS)	0.457 in	11.61 mm	1000 Cycles	85 °C	-40 C	Gold	Gull Wing	Slide (Standard)	100 mA	Copper Alloy	4.7 mm	0.185 in	4	2.54 mm	0.1 "	Surface Mount	SPST	6 V	Raised
Nidec Components Corporation CFS-0403MC	Polyphenylene Sulfide (PPS)	0.457 in	11.61 mm	1000 Cycles	85 °C	-40 C	Gold	PC Pin	Slide (Standard)	100 mA	Copper Alloy	5.5 mm	0.217 in	4	2.54 mm	0.1 "	Through Hole	SPST	6 V	Raised
Nidec Components Corporation CFS-0403MB	Polyphenylene Sulfide (PPS)	0.457 in	11.61 mm	1000 Cycles	85 °C	-40 C	Gold	Gull Wing	Slide (Standard)	100 mA	Copper Alloy	4.7 mm	0.185 in	4	2.54 mm	0.1 "	Surface Mount	SPST	6 V	Raised
