178318 Series

Catalog

CONN HEADER VERT 10POS 3.81MM

Part	Insulation Material	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Contact Material	Applications	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions Loaded	Fastening Type	Connector Type	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Voltage Rating	Contact Shape	Termination	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Type	Style

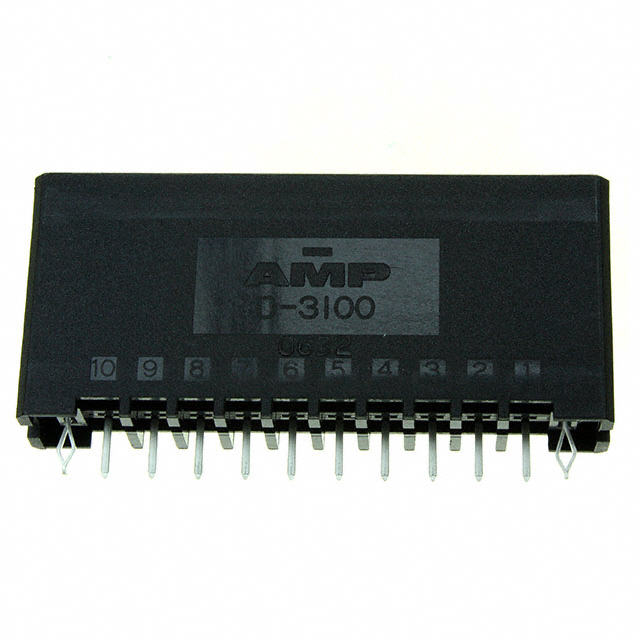

TE Connectivity Raychem Cable Protection 2-178318-2	Glass Filled Polyester Thermoplastic	Tin	0.15 in	3.81 mm	1	Copper Alloy	General Purpose Industrial	Black	105 ░C	-55 °C	UL94 V-0	All	Detent Lock	Header	Through Hole	3.81 mm	0.15 in	15 µin	0.38 µm	Shrouded - 4 Wall	250 VDC	Rectangular	Solder	10	0.85 in	21.59 mm	Gold PdNi +Gold	Tab	Board to Board Cable

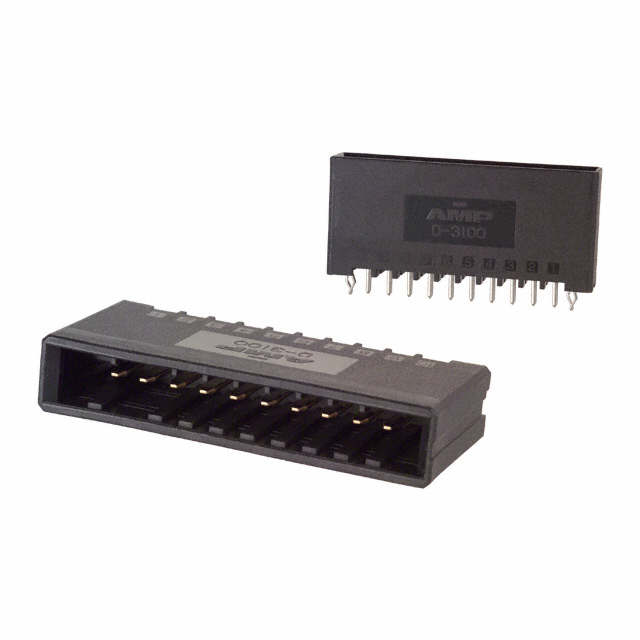

TE Connectivity Raychem Cable Protection 1-178318-2	Glass Filled Polyester Thermoplastic	Tin	0.15 in	3.81 mm	1	Copper Alloy	General Purpose Industrial	Black	105 ░C	-55 °C	UL94 V-0	All	Detent Lock	Header	Through Hole	3.81 mm	0.15 in	15 µin	0.38 µm	Shrouded - 4 Wall	250 VDC	Rectangular	Solder	10	0.85 in	21.59 mm	Gold PdNi +Gold	Tab	Board to Board Cable
