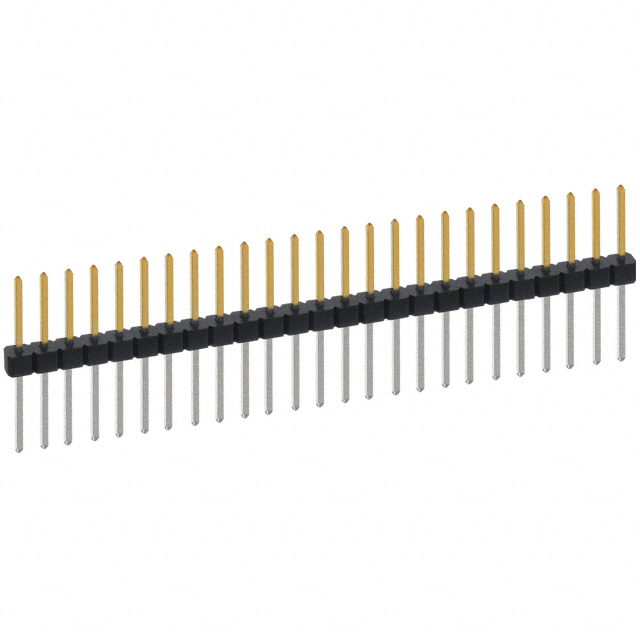

PBC25 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 25POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Type	Style	Contact Material	Contact Length - Mating	Contact Length - Mating	Termination	Mounting Type	Connector Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Positions Loaded	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Post	Material Flammability Rating	Number of Rows	Insulation Color	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Length - Post [custom]	Contact Length - Post [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height [z]	Insulation Height [z]

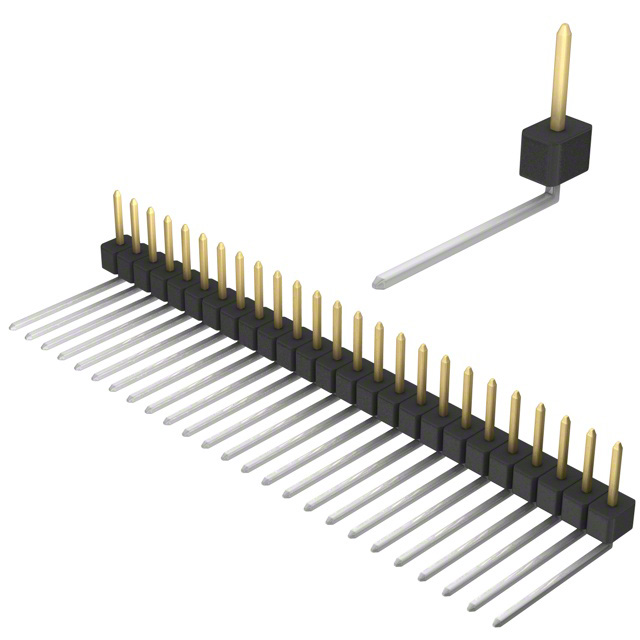

Sullins Connector Solutions PBC25SBEN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.23 in	5.84 mm	Solder	Right Angle Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C	3.56 mm	0.14 in	Push-Pull	Tin	UL94 V-0	1	Black	0.5 "	12.7 mm	25

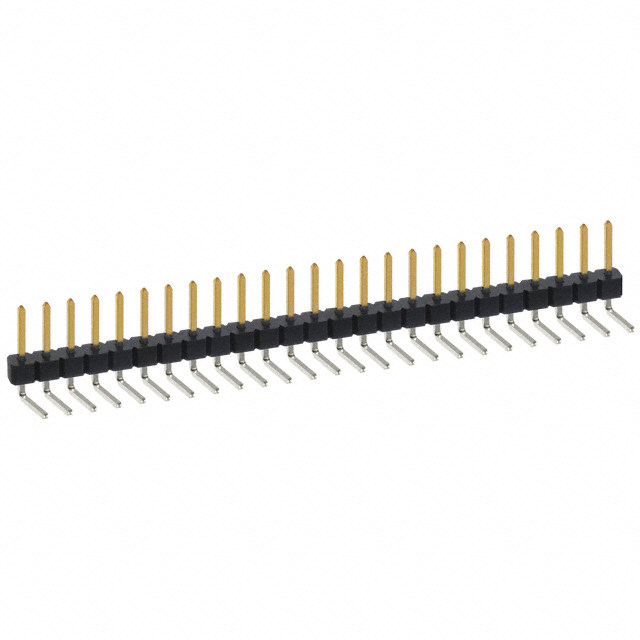

Sullins Connector Solutions PBC25SBBN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.23 in	5.84 mm	Solder	Right Angle Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C	3.56 mm	0.14 in	Push-Pull	Tin	UL94 V-0	1	Black			25	5.08 mm	0.2 "
Sullins Connector Solutions PBC25DFDN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.318 in	8.08 mm	Solder	Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C	2.54 mm	0.1 in	Push-Pull	Tin	UL94 V-0		Black	0.42 in	10.67 mm	50			0.1 in	2.54 mm	21.29 mm	0.838 in	2
Sullins Connector Solutions PBC25SFCN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.318 in	8.08 mm	Solder	Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C	2.54 mm	0.1 in	Push-Pull	Tin	UL94 V-0	1	Black	0.32 in	8.13 mm	25					18.75 mm			0.738 in

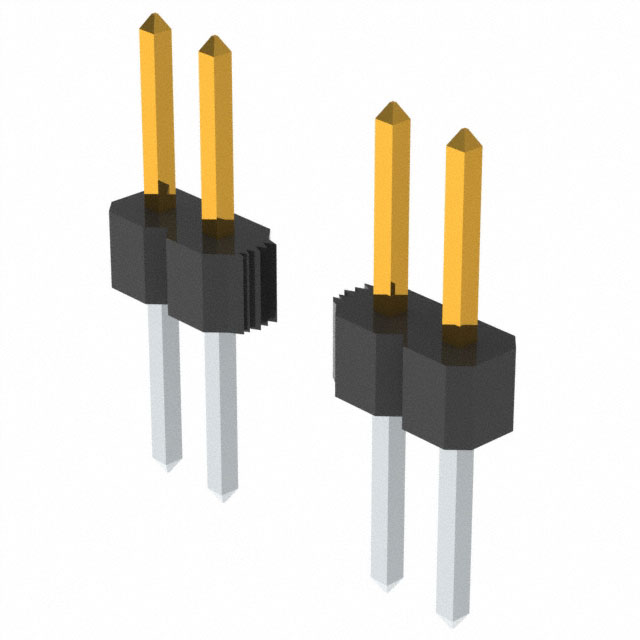

Sullins Connector Solutions PBC25SABN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.23 in	5.84 mm	Solder	Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C	2.54 mm	0.1 in	Push-Pull	Tin	UL94 V-0	1	Black	0.23 "	5.84 mm	25					14.22 mm	0.56 in

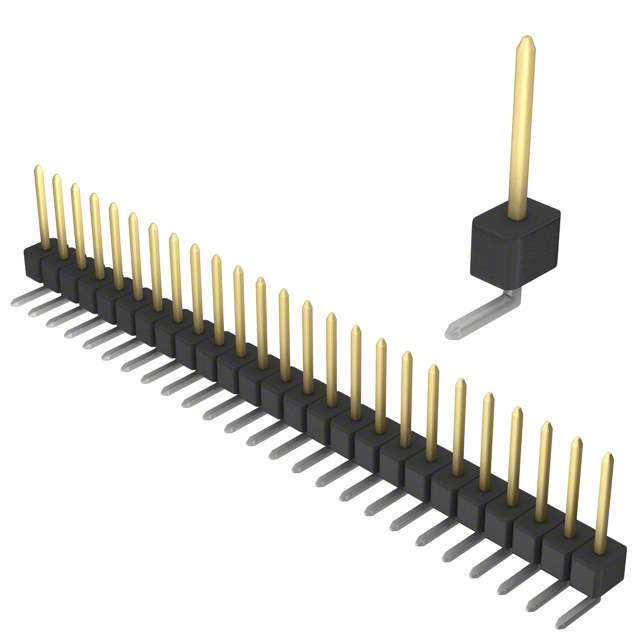

Sullins Connector Solutions PBC25SGAN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.318 in	8.08 mm	Solder	Right Angle Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C	3.56 mm	0.14 in	Push-Pull	Tin	UL94 V-0	1	Black	0.1 in	2.54 mm	25
Sullins Connector Solutions PBC25DAAN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.23 in	5.84 mm	Solder	Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C	2.54 mm	0.1 in	Push-Pull	Tin	UL94 V-0		Black	0.12 in	3.05 mm	50			0.1 in	2.54 mm			2		11.43 mm	0.45 in

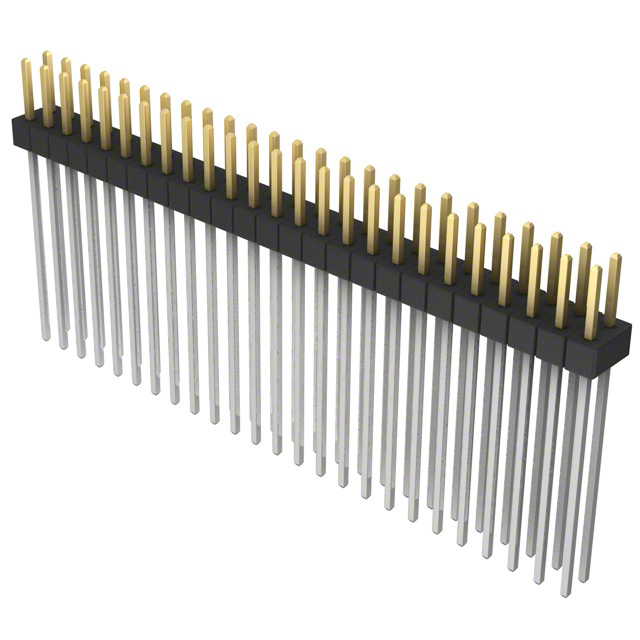

Sullins Connector Solutions PBC25DAHN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.23 in	5.84 mm	Solder	Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C	2.54 mm	0.1 in	Push-Pull	Tin	UL94 V-0		Black	0.82 in	20.83 mm	50			0.1 in	2.54 mm	29.21 mm	1.15 in	2
Sullins Connector Solutions PBC25SFBN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.318 in	8.08 mm	Solder	Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C	2.54 mm	0.1 in	Push-Pull	Tin	UL94 V-0	1	Black	0.22 in	5.58 mm	25					16.21 mm	0.638 in
Sullins Connector Solutions PBC25DBAN	2.54 µm	100 µin	Unshrouded	Male Pin	Board to Board Cable	Phosphor Bronze	0.23 in	5.84 mm	Solder	Right Angle Through Hole	Header Breakaway	Square	0.25 µm	10 µin	Polybutylene Terephthalate (PBT)	All	3 A	0.1 "	2.54 mm	Gold	-65 ░C	125 °C			Push-Pull	Tin	UL94 V-0		Black	0.1 in	2.54 mm	50			0.1 in	2.54 mm			2				6.1 mm	0.24 in
