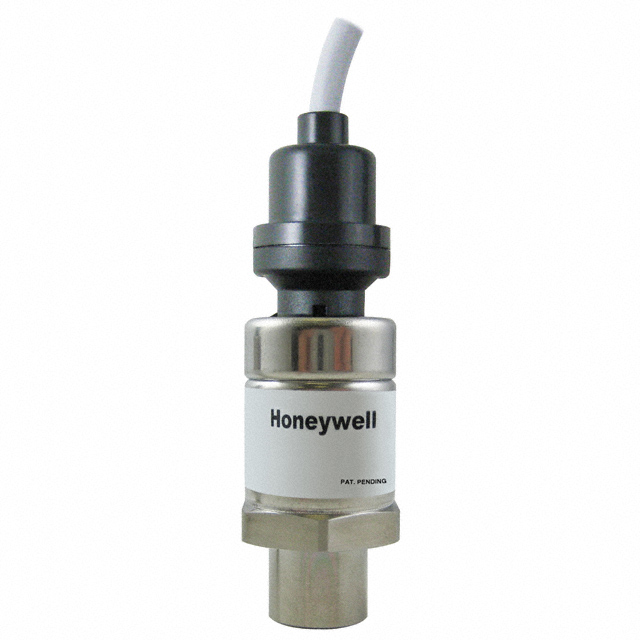

PX2EF1 Series

Catalog

PRESSURE TRANSDUCER

Part	Features	Applications	Package / Case	Operating Pressure	Operating Pressure	Output [Min]	Output [Max]	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size [x]	Port Size [x]	Port Size	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Pressure Type
Honeywell Sensing and Productivity Solutions PX2EF1XX030PAAAX	Temperature Compensated	Industrial Automation	Cylinder	206.84 kPa	30 PSI	0.5 V	4.5 V	Threaded	125 °C	-40 °C	0.25 %	Analog Voltage	4.75 V	5.25 V	11.11 mm	0.4375 "	Female	Wire Leads	1034.21 kPa	150 PSI
Honeywell Sensing and Productivity Solutions PX2EF1XX500PSBDX	Temperature Compensated	Industrial Automation	Cylinder	3447.38 kPa	500 PSI	0.25 V	10.25 V	Threaded	125 °C	-40 °C	0.25 %	Analog Voltage	13 V	30 VDC	11.11 mm	0.4375 "	Female	Wire Leads	6894.76 kPa	1000 PSI	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX2EF1XX01KPSAAX	Temperature Compensated	Industrial Automation	Cylinder	6894.76 kPa	1000 PSI	0.5 V	4.5 V	Threaded	125 °C	-40 °C	0.25 %	Analog Voltage	4.75 V	5.25 V	11.11 mm	0.4375 "	Female	Wire Leads	13789.51 kPa	2000 PSI	Sealed Gauge
