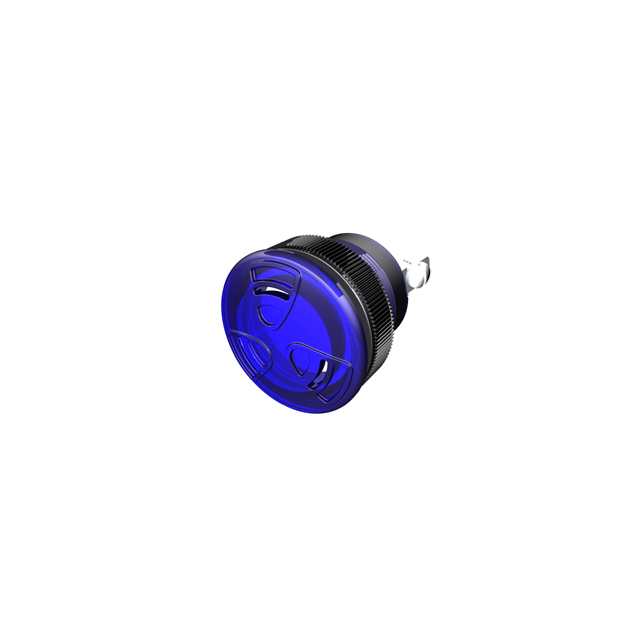

TLHS-88B Series
Manufacturer: Floyd Bell Inc
Beta
⌘K
BUZZER 33MM PNL MNT
| Part | Driver Circuitry | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Frequency | Approval Agency | Voltage Range [Max] | Voltage Range [Min] | Mounting Type | Operating Mode | Termination | Termination | Termination | Size / Dimension [diameter] | Size / Dimension [diameter] | Port Location | Ingress Protection | Input Type | Sound Pressure Level (SPL) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Indicator Internally Driven | 50 mA | 110 mA | 2.9 kHz | UL UR | 30 V | 9 V | Panel Mount | Siren | Quick Connect Tab | 0.25 " | 6.35 mm | 1.299 in | 33 mm | Top | IP68 - Dust Tight Waterproof | DC | 103 dB | 29.97 mm | 1.18 in |
 Floyd Bell Inc | Indicator Internally Driven | 50 mA | 110 mA | 2.9 kHz | UL UR | 30 V | 9 V | Panel Mount | Siren | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | 1.3 in | 33.02 mm | Top | IP68 - Dust Tight Waterproof | DC | 103 dB | 29.97 mm | 1.18 in |
