BS-32 Series

Catalog

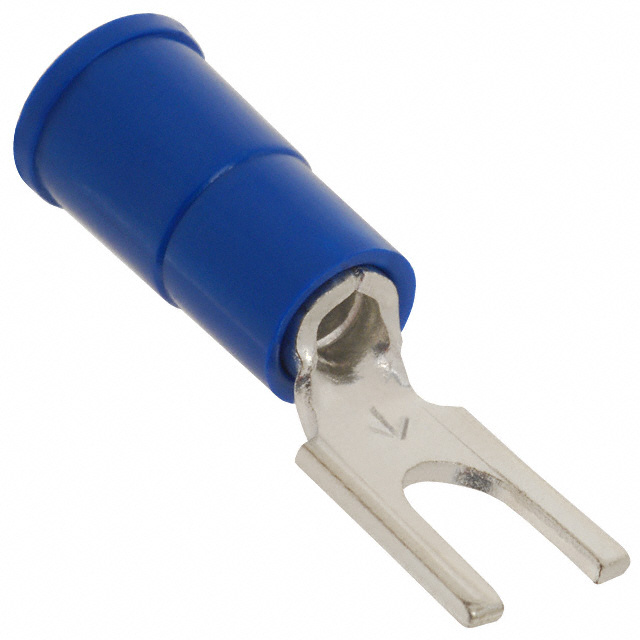

16-14 AWG NYLON INSULATED W/INSULATION GRIP BLOCK FORK TERMINA

Part	Material - Insulation	Termination	Color	Insulation	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Stud/Tab Size	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Features	Length - Overall [x]	Length - Overall [x]	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Material	Length - Overall	Length - Overall
3M Electronic Specialty BS-32-4S-NB	Nylon Polyamide (PA)	Crimp	Blue	Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	4 Stud
3M Electronic Specialty BS-32-8-NB	Nylon Polyamide (PA)	Crimp	Blue	Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	8 Stud
3M Electronic Specialty BS-32-4S-P	Vinyl	Crimp	Blue	Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	4 Stud	11.43 mm	0.45 in	6.35 mm	0.25 "	Butted Seam	0.85 in	21.59 mm	Tin	6.35 mm	0.25 "	Copper ETP
3M Electronic Specialty BS-32-8		Crimp		Non-Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	8 Stud	6.35 mm	0.25 in	6.35 mm	0.25 "	Butted Seam	0.65 in	16.5 mm	Tin			Copper ETP
3M Electronic Specialty BS-32-6S-P	Vinyl	Crimp	Blue	Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	6 Stud	11.43 mm	0.45 in	6.35 mm	0.25 "	Butted Seam	0.85 in	21.59 mm	Tin	6.35 mm	0.25 "	Copper ETP
3M Electronic Specialty BS-32-10		Crimp		Non-Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	10 Stud	6.35 mm	0.25 in	6.35 mm	0.25 "	Butted Seam	0.65 in	16.5 mm	Tin			Copper ETP
3M Electronic Specialty BS-32-6-NB	Nylon Polyamide (PA)	Crimp	Blue	Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	6 Stud
3M Electronic Specialty BS-32-10-W		Crimp		Non-Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	10 Stud	6.35 mm	0.25 in	6.35 mm	0.25 "	Brazed Seam			Tin			Copper ETP	0.65 in	16.51 mm
3M Electronic Specialty BS-32-6S		Crimp		Non-Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	6 Stud	6.35 mm	0.25 in	6.35 mm	0.25 "	Butted Seam	0.65 in	16.5 mm	Tin	6.35 mm	0.25 "	Copper ETP
3M Electronic Specialty BS-32-6-W		Crimp		Non-Insulated	Free Hanging (In-Line)	14 AWG	16 AWG	Standard	6 Stud	6.35 mm	0.25 in	6.35 mm	0.25 "	Brazed Seam			Tin			Copper ETP	0.65 in	16.51 mm
