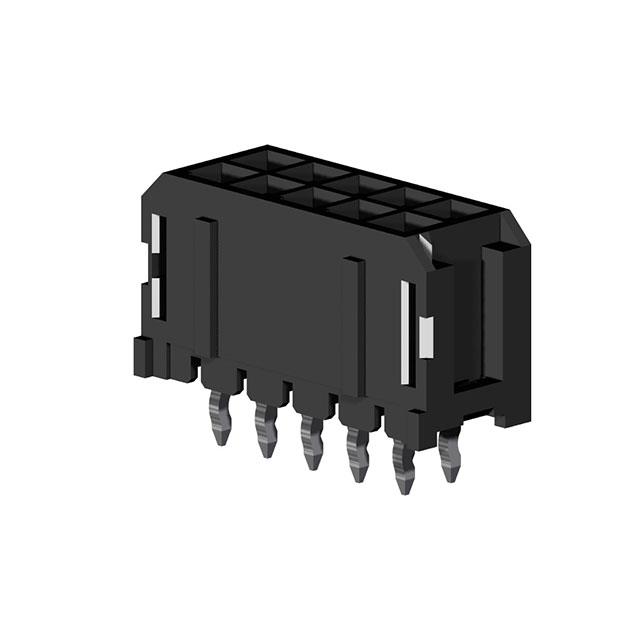

CP3502P1 Series
Manufacturer: Cvilux USA
Beta
⌘K
2 POS 3.00MM(.118) DUAL ROWS VER
| Part | Contact Material | Contact Type | Insulation Color | Shrouding | Features | Insulation Material | Number of Positions | Current Rating (Amps) | Mounting Type | Insulation Height [z] | Insulation Height [z] | Style | Voltage Rating | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Number of Rows [custom] | Fastening Type | Connector Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cvilux USA | Brass | Male Pin | Black | Shrouded - 4 Wall | Board Guide | Thermoplastic | 2 | 7 A | Through Hole | 0.39 in | 9.91 mm | Board to Cable/Wire | 600 VAC | Tin | -40 C | 105 ░C | All | 0.126 " | 3.2 mm | Square | 0.118 in | 3 mm | 2 | Locking Ramp | Header | Kinked Pin Solder |
