GWCSSRM2.E Series

Catalog

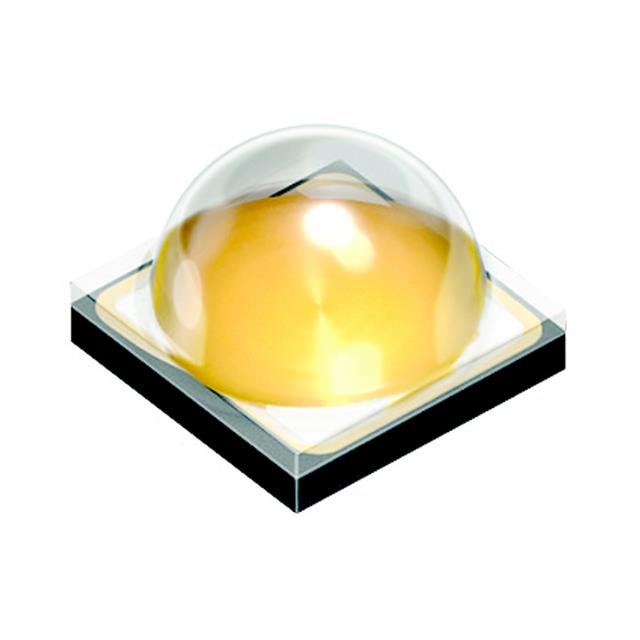

OSLON SQUARE 4000K

Part	Thermal Resistance of Package	Flux @ 85°C, Current - Test	Lumens/Watt @ Current - Test	Current - Max [Max]	Color	Viewing Angle	Supplier Device Package	CCT (K)	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Mounting Type	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]
ams-OSRAM USA INC. GW CSSRM2.EM-M7M9-XX55-1	3.5 °C/W	255 lm	130 lm/W	1.8 A	Neutral White	120 °	SMD	4000 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount
ams-OSRAM USA INC. GW CSSRM2.EM-M7M9-XX56-1	3.5 °C/W	255 lm	130 lm/W	1.8 A	Warm White	120 °	SMD	3500 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount
ams-OSRAM USA INC. GW CSSRM2.EM-N1N3-A333-1-700-R18	1.8 °C/W		151 lm/W	1.8 A	Cool White	120 °	SMD	5000 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount	280 lm	310 lm
ams-OSRAM USA INC. GW CSSRM2.EM-M8MF-XX57-1-700-R18-DS	1.8 °C/W	265 lm	135 lm/W	1.8 A	Warm White	120 °	SMD	3000 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount
ams-OSRAM USA INC. GW CSSRM2.EM-M6M8-XX58-1	3.5 °C/W	245 lm	125 lm/W	1.8 A	Warm White	120 °	SMD	2700 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount
ams-OSRAM USA INC. GW CSSRM2.EM-M9N1-XX53-K2L2-700-R18-XX	1.8 °C/W		140 lm/W	1.8 A	Cool White	120 °	SMD	5000 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount	260 lm	290 lm
ams-OSRAM USA INC. GW CSSRM2.EM-M6M8-A737-1-700-R18	3.5 °C/W	245 lm	125 lm/W	1.8 A	Warm White	120 °	SMD	3000 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount
ams-OSRAM USA INC. GW CSSRM2.EM-M6M8-XX57-1	3.5 °C/W	245 lm	125 lm/W	1.8 A	Warm White	120 °	SMD	3000 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount
ams-OSRAM USA INC. GW CSSRM2.EM-MFN2-A535-1-700-R18	1.8 °C/W		145 lm/W	1.8 A	Neutral White	120 °	SMD	4000 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount	270 lm	300 lm
ams-OSRAM USA INC. GW CSSRM2.EM-M8MF-XX53-1	3.5 °C/W	265 lm	135 lm/W	1.8 A	Cool White	120 °	SMD	5000 K	3030 Metric	1212	2.09 mm	0.082 in	80	3 mm	0.118 in	3 mm	0.118 "	2.8 V	Surface Mount
