2808-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

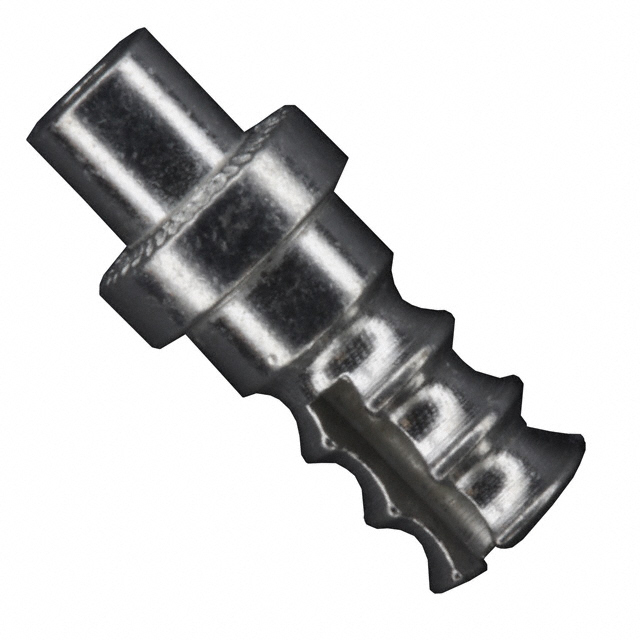

CONN PC PIN CIRC .141DIA TINLEAD
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Length - Overall | Length - Overall | Board Thickness | Board Thickness | Terminal Style | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Insulation | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 4.78 mm | 0.188 in | Brass Alloy | 0.433 in | 11 mm | 1.57 mm | 0.062 " | Single End Slotted | 2.84 mm | 0.112 " | Non-Insulated | 2.67 mm | 0.105 " | Through Hole | 3.58 mm | 0.141 in | Tin-Lead | 0.116 in | 2.95 mm | PC Pin | Knurled Swage | 200 Áin | 5.08 Ám | 0.266 in | 6.76 mm |
 Mill-Max Manufacturing Corp. | 4.78 mm | 0.188 in | Brass Alloy | 0.433 in | 11 mm | 1.57 mm | 0.062 " | Single End Slotted | 2.84 mm | 0.112 " | Non-Insulated | 2.67 mm | 0.105 " | Through Hole | 3.58 mm | 0.141 in | Tin-Lead | 0.116 in | 2.95 mm | PC Pin | Knurled Swage | 300 µin | 7.62 µm | 0.266 in | 6.76 mm |
Mill-Max Manufacturing Corp. | 4.78 mm | 0.188 in | Brass Alloy | 0.433 in | 11 mm | 1.57 mm | 0.062 " | Single End Slotted | 2.84 mm | 0.112 " | Non-Insulated | 2.67 mm | 0.105 " | Through Hole | 3.58 mm | 0.141 in | Silver | 0.116 in | 2.95 mm | PC Pin | Knurled Swage | 300 µin | 7.62 µm | 0.266 in | 6.76 mm |
