892-072 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 72POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Number of Positions	Card Type	Termination	Number of Positions/Bay/Row	Pitch	Pitch	Contact Material	Color	Read Out	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Number of Rows [custom]	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Features
EDAC Inc. 892-072-542-202	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Wire Wrap	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Through Hole	2	Female	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-072-523-208	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Solder	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Through Hole	2	Female	4-40 Flush Mount Threaded Insert Top Opening			125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-072-500-203	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Solder Eyelet(s)	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Through Hole	2	Female	Floating Bobbin Flush Mount	2.95 mm	0.116 "	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-072-555-208	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Solder	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Board Edge Straddle Mount	2	Female	4-40 Flush Mount Threaded Insert Top Opening			125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

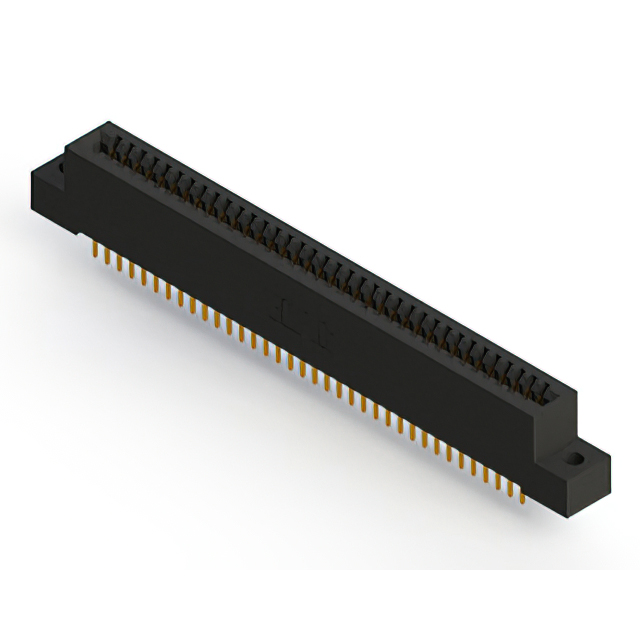

EDAC Inc. 892-072-521-202	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Solder	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Through Hole	2	Female	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm

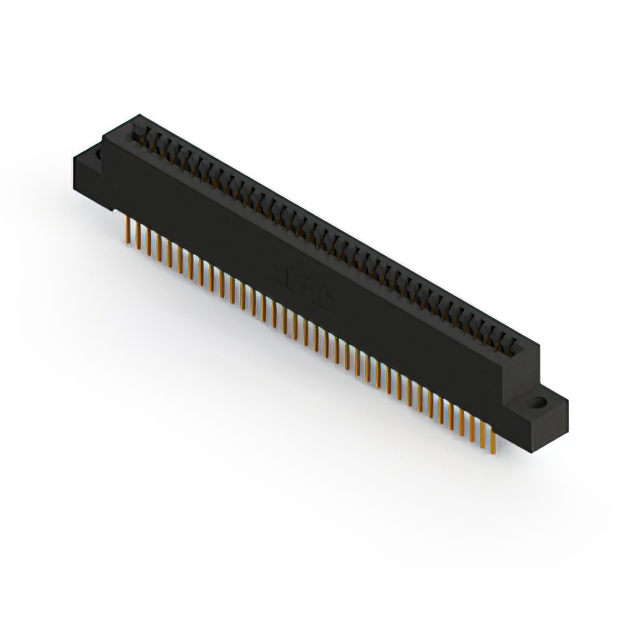

EDAC Inc. 892-072-541-204	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Wire Wrap	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Through Hole	2	Female	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-072-500-204	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Solder Eyelet(s)	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Through Hole	2	Female	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-072-544-207	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Wire Wrap	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Through Hole	2	Female	Flush Mount M3 Threaded Insert Top Opening			125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-072-560-202	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Solder	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Board Edge Straddle Mount	2	Female	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

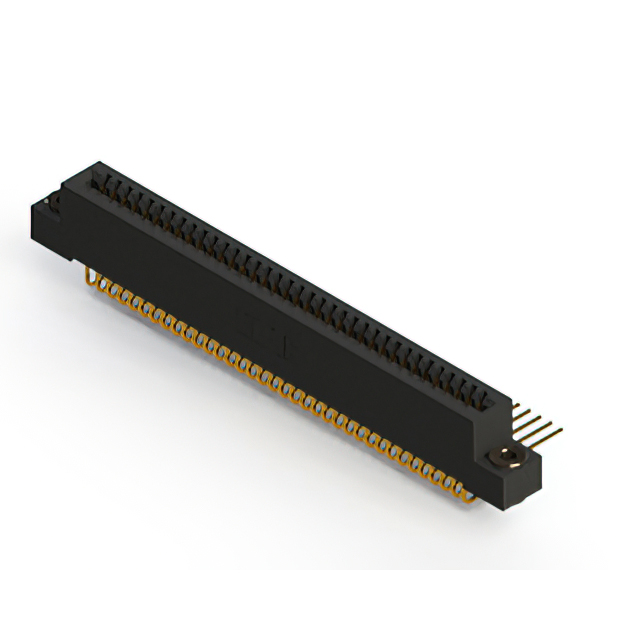

EDAC Inc. 892-072-559-203	2	Polyphenylene Sulfide (PPS)	72	Non Specified - Dual Edge	Solder	36	0.1 "	2.54 mm	Copper Alloy	Black	Dual	Cantilever	0.25 Ám	10 Áin	Gold	Right Angle Through Hole	2	Female	Floating Bobbin Flush Mount	2.95 mm	0.116 "	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm
