181-23 Series

Catalog

WIRE DUCT SLOTTED SCREW 6' BLACK

Part	Features	Color	Length	Length	Height	Height	Width [x]	Width [x]	Wire Duct Type	Material	Mounting Type	Height [z]	Height [z]	Length [x]	Length [x]	Width	Width

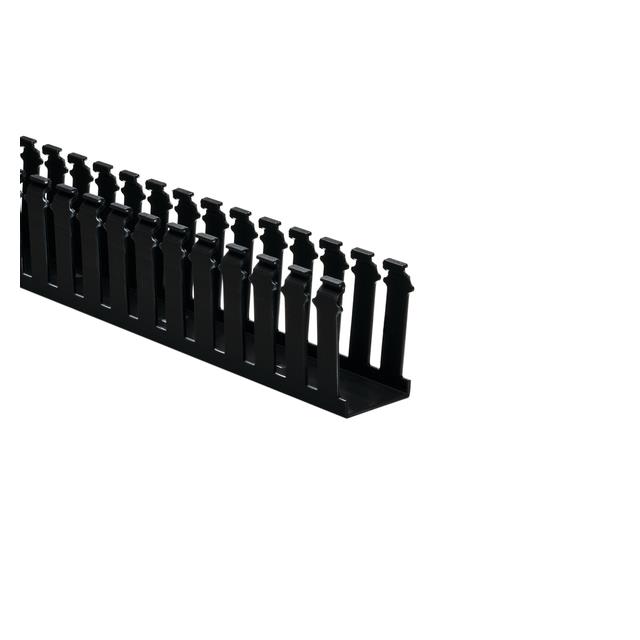

HELLERMANNTYTON 181-23013	Pre-Punched Mounting Holes Self Extinguishing	Black	6 ft	1.83 m	77.98 mm	3.07 in	50.8 mm	2 in	Slotted (Raceway) Base	Poly-Vinyl Chloride (PVC)	Screw
HELLERMANNTYTON 181-23036	Pre-Punched Mounting Holes Self Extinguishing	Black	6 ft	1.83 m	127.18 mm		50.8 mm	2 in	Slotted (Raceway) Base	Poly-Vinyl Chloride (PVC)	Screw	5.007 in
HELLERMANNTYTON 181-23035	Pre-Punched Mounting Holes Self Extinguishing	Blue	6 ft	1.83 m	127.18 mm		50.8 mm	2 in	Slotted (Raceway) Base	Poly-Vinyl Chloride (PVC)	Screw	5.007 in

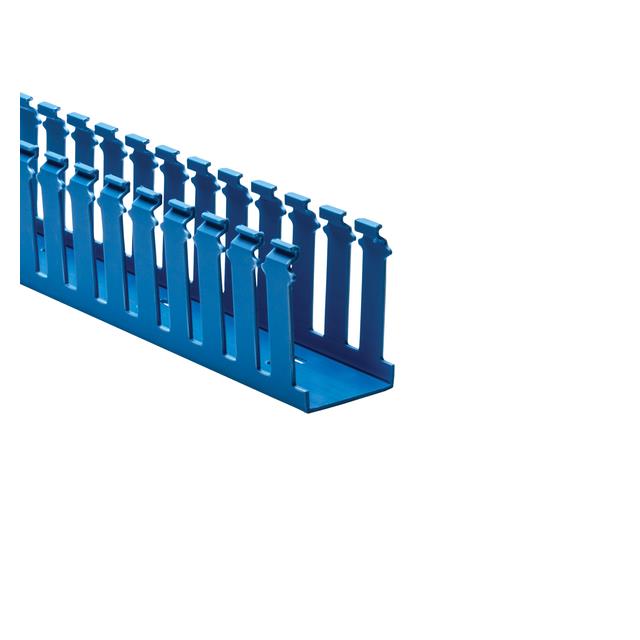

HELLERMANNTYTON 181-23004	Pre-Punched Mounting Holes Self Extinguishing	Blue	6 ft	1.83 m			50.8 mm	2 in	Slotted (Raceway) Base	Poly-Vinyl Chloride (PVC)	Screw	3.009 in	76.43 mm
HELLERMANNTYTON 181-23003	Pre-Punched Mounting Holes Self Extinguishing	Black	6 ft	1.83 m			50.8 mm	2 in	Slotted (Raceway) Base	Poly-Vinyl Chloride (PVC)	Screw	3.009 in	76.43 mm
HELLERMANNTYTON 181-23012	Pre-Punched Mounting Holes Self Extinguishing	White	6 ft	1.83 m			50.8 mm	2 in	Slotted (Raceway) Base	Poly-Vinyl Chloride (PVC)	Adhesive Screw	3.009 in	76.43 mm

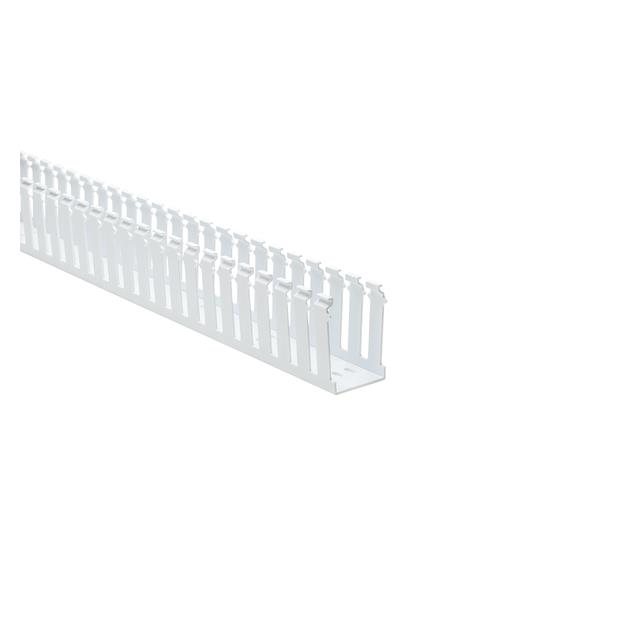

HELLERMANNTYTON 181-23009	Pre-Punched Mounting Holes Self Extinguishing	White	1 ft 1.08 ft 1.17 ' 1.42 ft 1.67 ft 1.83 ' 1.92 ft 2 ft 6 ft 15 in	1.83 m 304.8 mm 330.2 mm 355.6 mm 381 mm 431.8 mm 482.58 mm 508 mm 558.8 mm 584.2 mm 609.6 mm			50.8 mm	2 in	Slotted (Raceway) Base	Poly-Vinyl Chloride (PVC)	Screw	3.009 in	76.43 mm	1.33 ' 1.5 ft 1.58 ' 21 in	406.4 mm 457.2 mm 533.4 mm
HELLERMANNTYTON 181-23010	Pre-Punched Mounting Holes Self Extinguishing	Gray	6 ft	1.83 m			50.8 mm	2 in	Slotted (Raceway) Base	Poly-Vinyl Chloride (PVC)	Adhesive Screw	3.009 in	76.43 mm
HELLERMANNTYTON 181-23092	Pre-Punched Mounting Holes Self Extinguishing	Black	6 ft	1.83 m					Slotted (Raceway) Base	Poly-Vinyl Chloride (PVC)	Screw	3.009 in	76.43 mm			2.5 in	63.5 mm

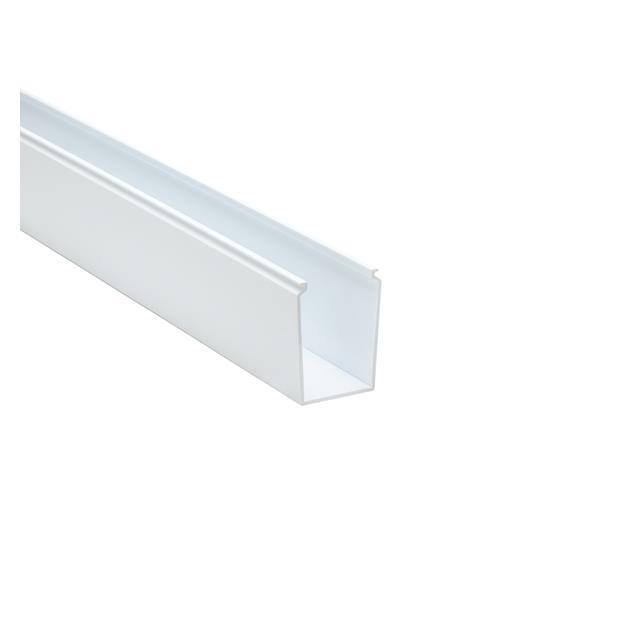

HELLERMANNTYTON 181-23002	Pre-Punched Mounting Holes Self Extinguishing	White	6 ft	1.83 m			50.8 mm	2 in		Poly-Vinyl Chloride (PVC)	Screw	3.009 in	76.43 mm
