MQDC Series

Catalog

CORDSET A-CODE M12 SINGLE ENDED

Part	1st Connector Orientation	Ingress Protection	1st Connector Type	1st Connector Number of Positions Loaded	Usage	1st Connector Shell Size - Insert [custom]	Assembly Configuration	Length [x]	Length [x]	Cable Material	Color	Cable Type	1st Connector Mounting Type	1st Connector Gender	2nd Connector Type	Shielding	1st Connector Number of Positions	Length	Length	1st Connector Number of Positions [custom]

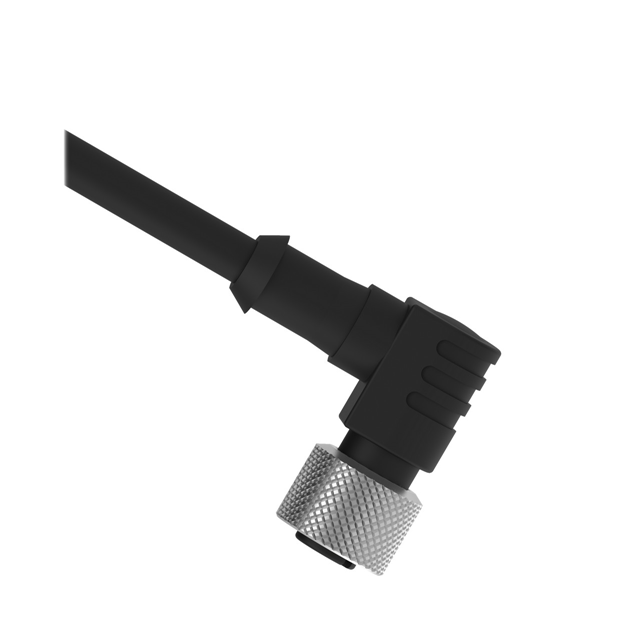

BANNER ENGINEERING MQDC1-501.5RA	Keyed	IP67 - Dust Tight Waterproof	Plug Right Angle	All	Industrial Environments	M12	Standard	457.2 mm	1.5 ft	Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Unshielded	5
BANNER ENGINEERING MQDC-WDSS-0430	Keyed	IP69K - Dust Tight High Temp Water Jets Waterproof	Plug	All	Industrial Environments	M12	Standard			Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Unshielded	4	9.14 m	30 '
BANNER ENGINEERING MQDC20-515	Keyed	IP67 - Dust Tight Waterproof	Plug	All	Industrial Environments	M12	Standard			Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Unshielded	5	4.57 m	15 '
BANNER ENGINEERING MQDC-430-GYP	Keyed	IP66 IP67 IP68	Plug	All	Industrial Environments	M12	Standard			Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Unshielded	4
BANNER ENGINEERING MQDC2S-850	Keyed	IP67 - Dust Tight Waterproof	Plug	All	Industrial Environments	M12	Standard	15.24 m	50 ft	Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Shielded				8
BANNER ENGINEERING MQDC-450	Keyed	IP67 - Dust Tight Waterproof	Plug	All	Industrial Environments	M12	Standard	15.24 m	50 ft	Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Unshielded	4

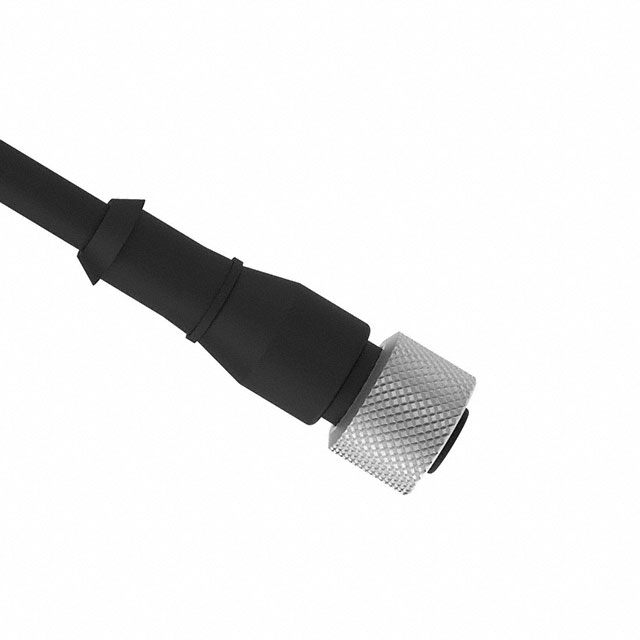

BANNER ENGINEERING MQDC1-515	Keyed	IP67 - Dust Tight Waterproof	Plug	All	Industrial Environments	M12	Standard			Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Unshielded	5	4.57 m	15 '
BANNER ENGINEERING MQDC2S-830	Keyed	IP67 - Dust Tight Waterproof	Plug	All	Industrial Environments	M12	Standard			Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Shielded		9.14 m	30 '	8
BANNER ENGINEERING MQDC2S-802	Keyed	IP67 - Dust Tight Waterproof	Plug	All	Industrial Environments	M12	Standard			Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Shielded		609.6 mm	2 ft	8

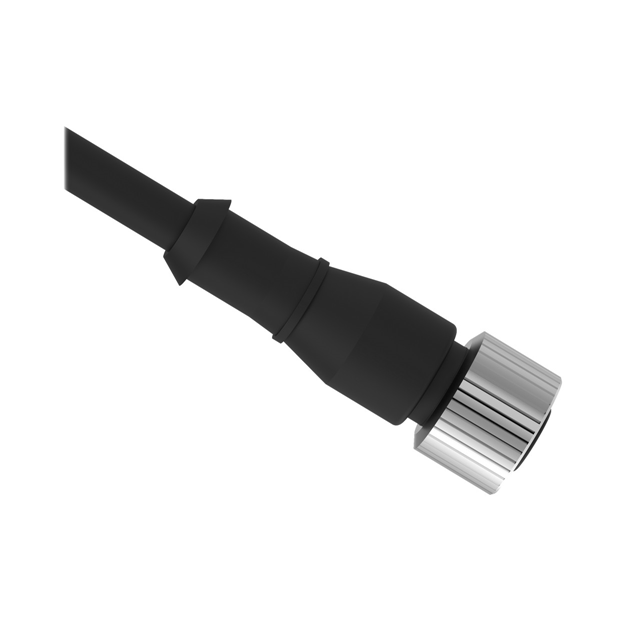

BANNER ENGINEERING MQDC20SS-506	Keyed	IP67 - Dust Tight Waterproof	Plug	All	Industrial Environments	M12	Standard			Polyvinyl Chloride (PVC)	Black	Round	Free Hanging (In-Line)	Female Sockets	Wire Leads	Unshielded	5	1.83 m	6 ft
