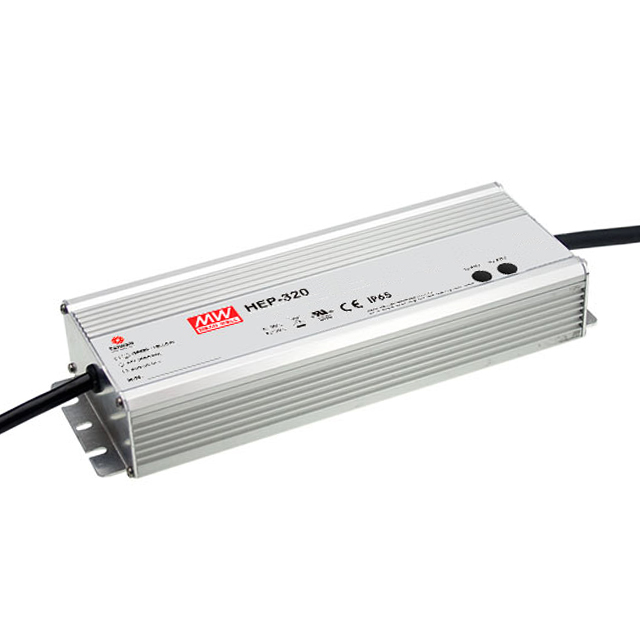

HEP-320 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 48V 322W
| Part | Voltage - Isolation | Current - Output 1 | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Applications | Type | Efficiency | Approval Agency | Power (Watts) | Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 3750 VDC | 6.7 A | 48 V | 70 °C | -55 °C | 1 | ITE (Commercial) | Enclosed | 94.5 % | CB CE cURus | 322 W | Adjustable Output IP65 PFC Universal Input | 252 mm | 43.8 mm | 90 mm | 9.92 " | 1.72 in | 3.54 in | Chassis Mount | 90 VAC 127 VDC | 305 VAC 431 VDC | |
MEAN WELL USA Inc. | 3750 VDC | 19 A | 15 V | 70 °C | -55 °C | 1 | ITE (Commercial) | Enclosed | 92.5 % | CB CE cURus | 285 W | Adjustable Output IP65 PFC Universal Input | 252 mm | 43.8 mm | 90 mm | 9.92 " | 1.72 in | 3.54 in | Chassis Mount | 90 VAC 127 VDC | 305 VAC 431 VDC | |
MEAN WELL USA Inc. | 3750 VDC | 22 A | 12 V | 70 °C | -55 °C | 1 | ITE (Commercial) | Enclosed | 91 % | CB CE cURus | 264 W | Adjustable Output IP65 PFC Universal Input | 252 mm | 43.8 mm | 90 mm | 9.92 " | 1.72 in | 3.54 in | Chassis Mount | 90 VAC 127 VDC | 305 VAC 431 VDC | |
MEAN WELL USA Inc. | 3750 VDC | 8.9 A | 70 °C | -55 °C | 1 | ITE (Commercial) | Enclosed | 94 % | CB CE cURus | 320 W | Adjustable Output IP65 PFC Universal Input | 252 mm | 43.8 mm | 90 mm | 9.92 " | 1.72 in | 3.54 in | Chassis Mount | 90 VAC 127 VDC | 305 VAC 431 VDC | 36 V |
