LCM-60 Series

Catalog

I/P 180~295VAC O/P 500~1400MA

Part	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Min) [Min]	Features	Power (Watts)	Current - Output (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Topology	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Isolation	Type	Termination Style	Dimming

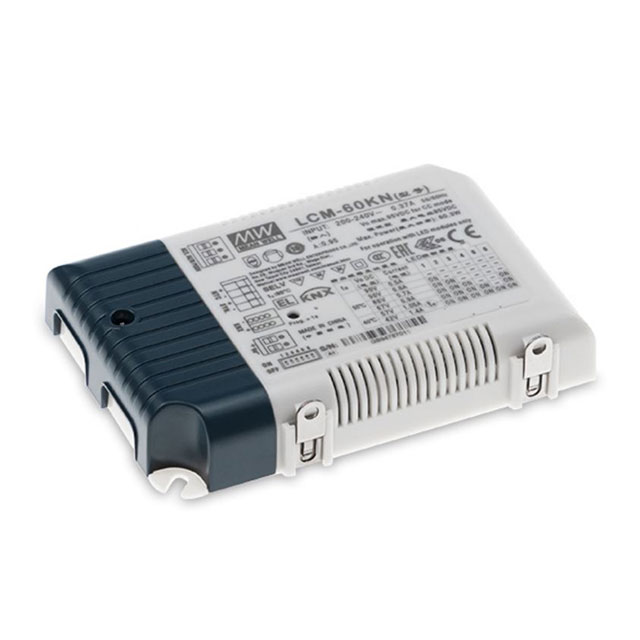

MEAN WELL USA Inc. LCM-60KN	Chassis Mount	295 VAC	2 V	90 V	180 VAC	OTP OVP SCP	60 W	1.4 A	91 %	3.21 "	23 mm	4.86 "	81.5 mm	123.5 mm	0.91 "	AC DC Converter	CB CCC CE EAC ENEC	-30 ░C	90 °C	6	3750 VDC	Constant Current	Terminal Block

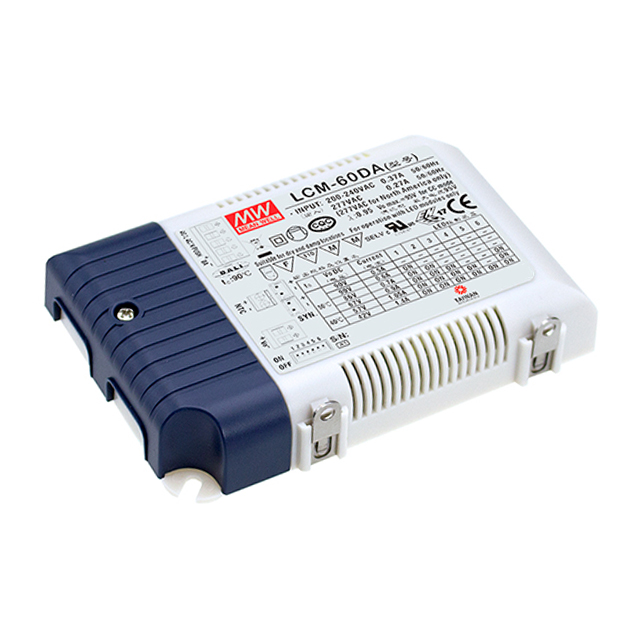

MEAN WELL USA Inc. LCM-60DA	Chassis Mount	295 VAC	2 V	90 V	180 VAC	OTP OVP SCP	60 W	1.4 A	92 %	3.21 "	23 mm	4.86 "	81.5 mm	123.5 mm	0.91 "	AC DC Converter	CB CCC CE cURus ENEC	-30 ░C	90 °C	1	3750 VDC	Constant Current	Terminal Block	DALI
