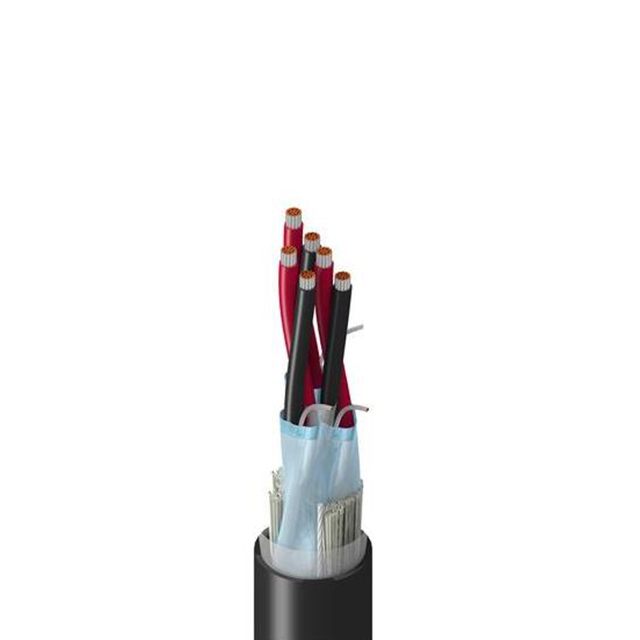

9369 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 6COND 18AWG
| Part | Shield Coverage | Shield Material | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Features | Usage | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Wire Gauge | Ratings | Conductor Insulation | Shield Type | Jacket (Insulation) Material | Cable Type | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Chrome | 30 AWG | 19 | Drain Wire Rip Cord | Instrumentation | 0.413 " | 10.49 mm | 18 AWG | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Foil | Poly-Vinyl Chloride (PVC) | Multi-Pair | 304.8 m | 1000 ft | -30 ░C | 105 ░C | Copper Tinned | 0.053 " | 1.346 mm | 6 |
Belden Inc. | 100 % | Aluminum | Chrome | 30 AWG | 19 | Drain Wire Rip Cord | Instrumentation | 0.413 " | 10.49 mm | 18 AWG | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Foil | Poly-Vinyl Chloride (PVC) | Multi-Pair | 762 m | 2500 ft | -30 ░C | 105 ░C | Copper Tinned | 0.053 " | 1.346 mm | 6 |
Belden Inc. | 100 % | Aluminum | Chrome | 30 AWG | 19 | Drain Wire Rip Cord | Instrumentation | 0.413 " | 10.49 mm | 18 AWG | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Foil | Poly-Vinyl Chloride (PVC) | Multi-Pair | -30 ░C | 105 ░C | Copper Tinned | 0.053 " | 1.346 mm | 6 |
