91276 Series

Catalog

CONN HEADER VERT 17POS 2.54MM

Part	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Voltage Rating	Contact Shape	Number of Rows	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Insulation Color	Fastening Type	Shrouding	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Connector Type	Number of Positions Loaded	Contact Material	Contact Finish - Post	Number of Positions

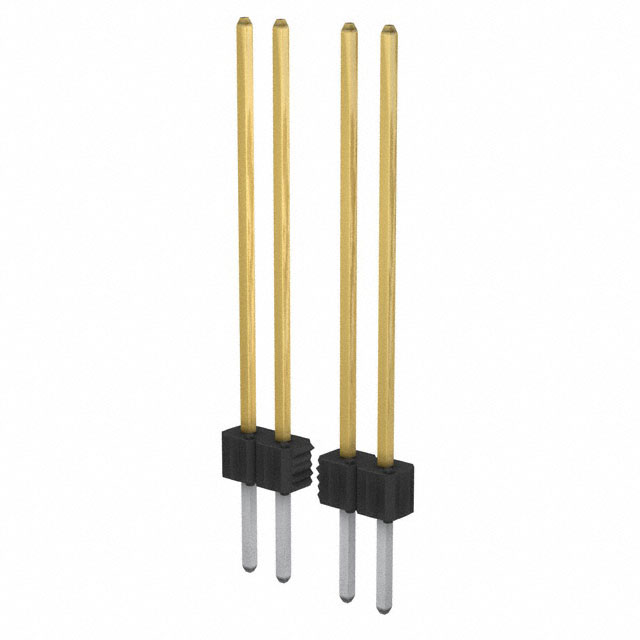

Amphenol ICC (FCI) 91276-117HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole	Gold or Gold GXT™	0.1 in	2.54 mm	Solder	30 Áin	0.76 Ám	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze

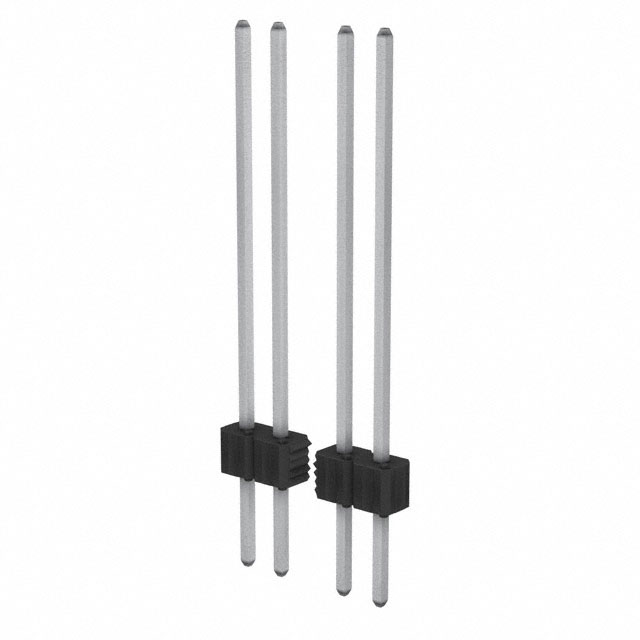

Amphenol ICC (FCI) 91276-425HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole		0.1 in	2.54 mm	Solder	100 çin	2.54 çm	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze	Tin
Amphenol ICC (FCI) 91276-407HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole		0.1 in	2.54 mm	Solder	100 çin	2.54 çm	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze	Tin	7

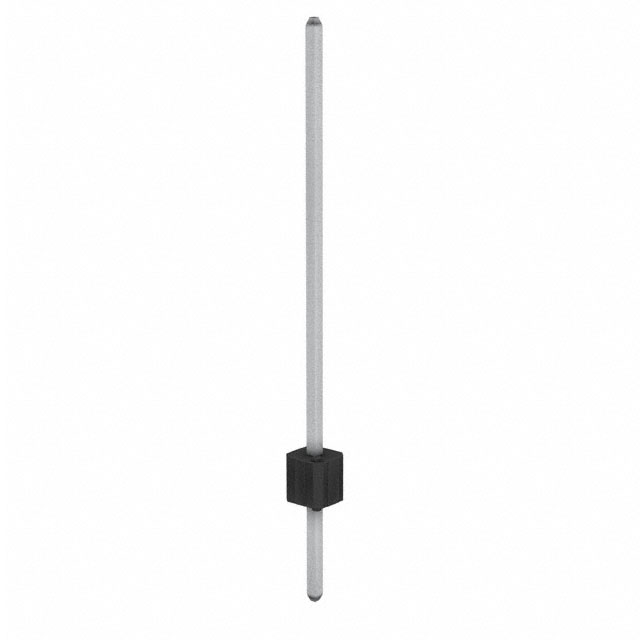

Amphenol ICC (FCI) 91276-401HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole				Solder	100 çin	2.54 çm	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze	Tin	1
Amphenol ICC (FCI) 91276-131HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole	Gold or Gold GXT™	0.1 in	2.54 mm	Solder	30 Áin	0.76 Ám	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze		31
Amphenol ICC (FCI) 91276-118HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole	Gold or Gold GXT™	0.1 in	2.54 mm	Solder	30 Áin	0.76 Ám	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze		18
Amphenol ICC (FCI) 91276-136HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole	Gold or Gold GXT™	0.1 in	2.54 mm	Solder	30 Áin	0.76 Ám	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze		36
Amphenol ICC (FCI) 91276-127HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole	Gold or Gold GXT™	0.1 in	2.54 mm	Solder	30 Áin	0.76 Ám	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze		27
Amphenol ICC (FCI) 91276-119HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole	Gold or Gold GXT™	0.1 in	2.54 mm	Solder	30 Áin	0.76 Ám	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze		19

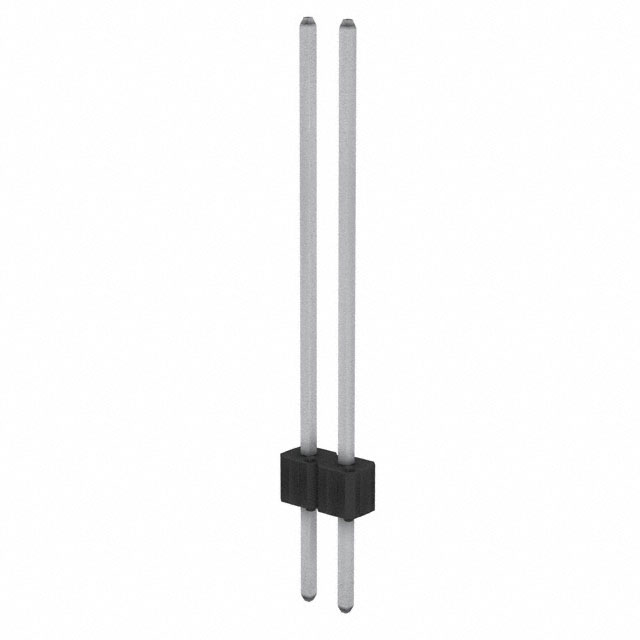

Amphenol ICC (FCI) 91276-402HLF	UL94 V-0	5.72 mm	0.225 in	0.1 in	2.54 mm	110 VDC	Square	1	22.86 mm	0.9 in	Through Hole		0.1 in	2.54 mm	Solder	100 çin	2.54 çm	Male Pin	Black	Push-Pull	Unshrouded	5 A	1.225 "	31.12 mm	Header	All	Phosphor Bronze	Tin	2
