2307729 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

16P,2MM,B-B,REC,DRHZ,SMD,0.1AU,T

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Voltage Rating	Insulation Material	Contact Type	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Number of Positions	Insulation Color	Fastening Type	Contact Finish - Mating	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Contact Material	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Number of Positions
TE Connectivity Raychem Cable Protection 1-2307729-6	3 µm	118.1 µin	3.94 µin	0.1 µm	UL94 V-0	125 VDC	Liquid Crystal Polymer (LCP)	Female Socket	Surface Mount Right Angle	Receptacle	125 °C	-40 °C	0.161 in	4.1 mm	16	Black	Push-Pull	Gold	Solder	0.079 in	2 mm	2	Square	All	2 A	Phosphor Bronze	Tin	0.079 in	2 mm

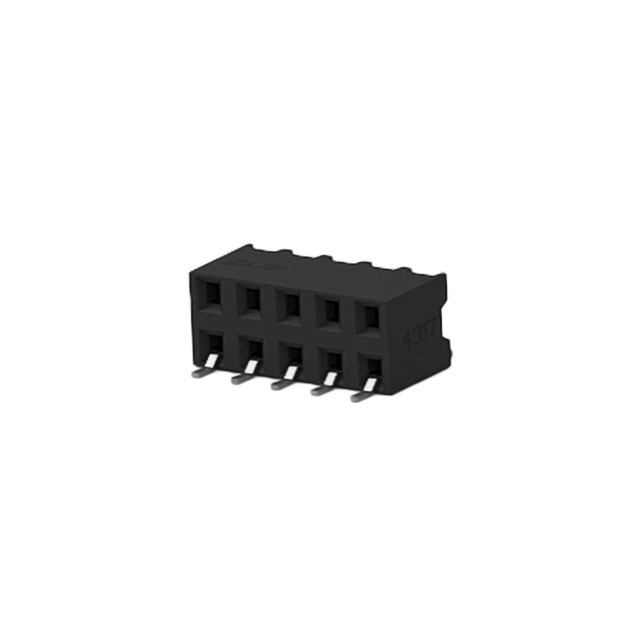

TE Connectivity Raychem Cable Protection 1-2307729-0	0.3 µm	12 µin	3.94 µin	0.1 µm	UL94 V-0	125 VDC	Liquid Crystal Polymer (LCP)	Female Socket	Surface Mount Right Angle	Receptacle	125 °C	-40 °C	0.161 in	4.1 mm		Black	Push-Pull	Gold	Solder	0.079 in	2 mm	2	Square	All	2 A	Phosphor Bronze	Tin	0.079 in	2 mm	10

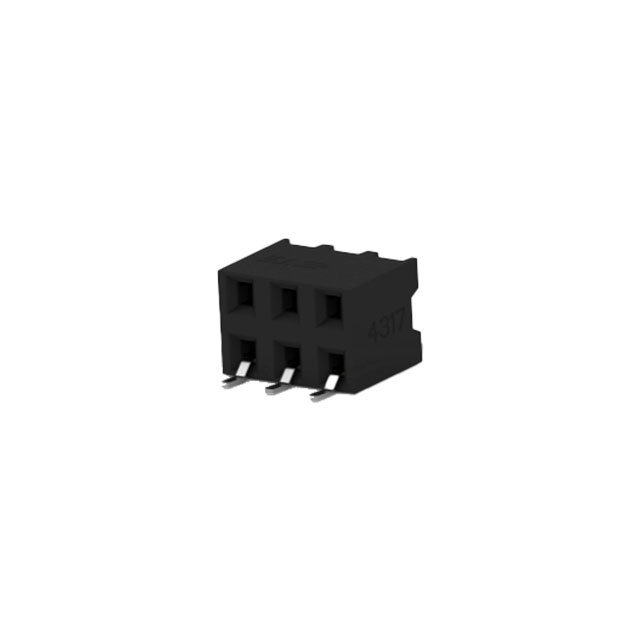

TE Connectivity Raychem Cable Protection 2307729-6	0.3 µm	12 µin	3.94 µin	0.1 µm	UL94 V-0	125 VDC	Liquid Crystal Polymer (LCP)	Female Socket	Surface Mount Right Angle	Receptacle	125 °C	-40 °C	0.161 in	4.1 mm		Black	Push-Pull	Gold	Solder	0.079 in	2 mm	2	Square	All	2 A	Phosphor Bronze	Tin	0.079 in	2 mm	6
TE Connectivity Raychem Cable Protection 2-2307729-0	3 µm	118.1 µin	3.94 µin	0.1 µm	UL94 V-0	125 VDC	Liquid Crystal Polymer (LCP)	Female Socket	Surface Mount Right Angle	Receptacle	125 °C	-40 °C	0.161 in	4.1 mm		Black	Push-Pull	Gold	Solder	0.079 in	2 mm	2	Square	All	2 A	Phosphor Bronze	Tin	0.079 in	2 mm	20
TE Connectivity Raychem Cable Protection 1-2307729-4	0.3 µm	12 µin	3.94 µin	0.1 µm	UL94 V-0	125 VDC	Liquid Crystal Polymer (LCP)	Female Socket	Surface Mount Right Angle	Receptacle	125 °C	-40 °C	0.161 in	4.1 mm		Black	Push-Pull	Gold	Solder	0.079 in	2 mm	2	Square	All	2 A	Phosphor Bronze	Tin	0.079 in	2 mm	14
