EGJ.3B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT MALE 30P GOLD SLDR CUP
| Part | Shell Size - Insert | Orientation [custom] | Insert Material | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Mounting Type | Connector Type | Material Flammability Rating | Shell Material | Mounting Feature | Color | Number of Positions | Ingress Protection | Shielding | Fastening Type | Current Rating (Amps) | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Contact Material | Contact Finish - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | 330 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | 30 | IP50 - Dust Protected | Shielded | Push-Pull | 3.5 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold | |
LEMO | 303 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | IP50 - Dust Protected | Shielded | Push-Pull | 25 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold | Crimp | |

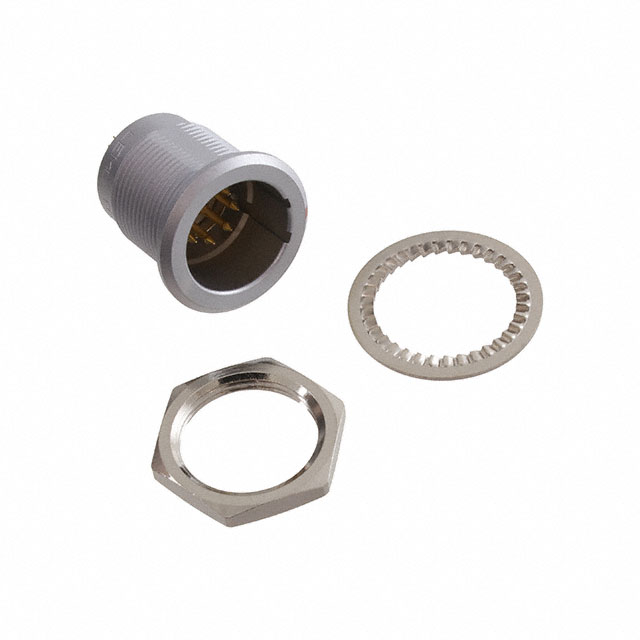

 LEMO | 308 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | 8 | IP50 - Dust Protected | Shielded | Push-Pull | 13 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold | |
LEMO | 314 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | 14 | IP50 - Dust Protected | Shielded | Push-Pull | 9 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold | |
LEMO | 318 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | 18 | IP50 - Dust Protected | Shielded | Push-Pull | 7 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold | |

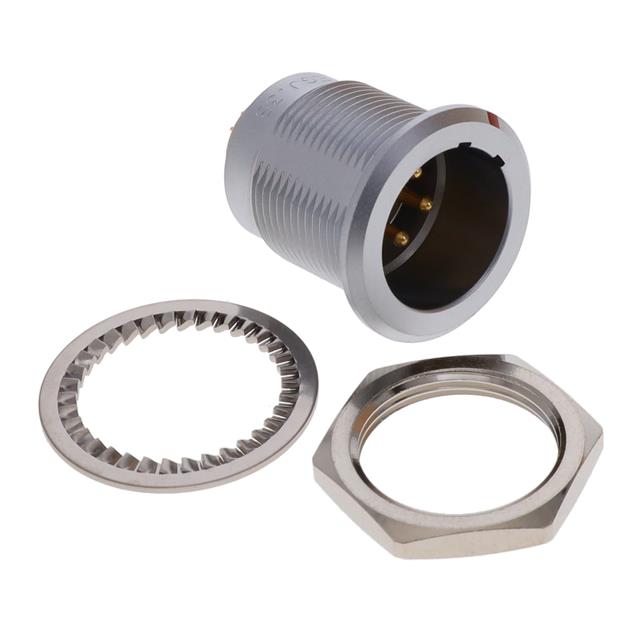

LEMO | 305 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | 5 | IP50 - Dust Protected | Shielded | Push-Pull | 19 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold | Crimp |
LEMO | 308 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | 8 | IP50 - Dust Protected | Shielded | Push-Pull | 13 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold | Crimp |
 LEMO | 305 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | 5 | IP50 - Dust Protected | Shielded | Push-Pull | 19 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold | |
LEMO | 304 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | 4 | IP50 - Dust Protected | Shielded | Push-Pull | 19 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold | Crimp |
LEMO | 304 | J | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | Panel Mount | Receptacle Male Pins | UL94 V-0 | Brass | Bulkhead - Rear Side Nut | Silver | 4 | IP50 - Dust Protected | Shielded | Push-Pull | 19 A | Chrome | -55 C | 250 °C | Metal | Brass | Gold |
