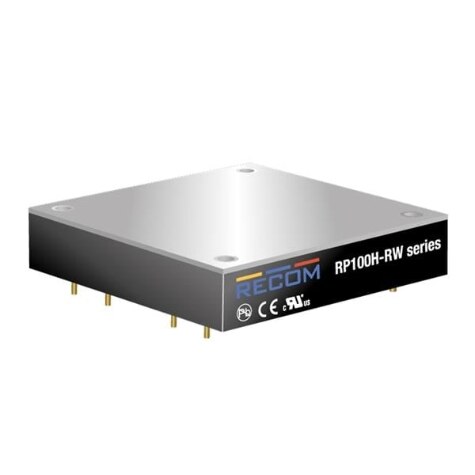

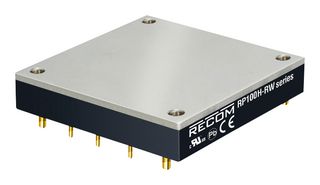

RP100H-RW Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 100W 43-160VIN 5VOUT 20A

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Power (Watts)	Applications	Type	Efficiency	Number of Outputs	Features	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
Recom Power RP100H-11005SRW/P	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	20 A	3000 V	5 V	43 V	Half Brick	Through Hole	160 V	100 W	ITE (Commercial) Railway	Isolated Module	93 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C
Recom Power RP100H-11015SRW/P	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	6.7 A	3000 V	15 V	43 V	Half Brick	Through Hole	160 V	100 W	ITE (Commercial) Railway	Isolated Module	91 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C
Recom Power RP100H-11024SRW/P	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	4.2 A	3000 V	24 V	43 V	Half Brick	Through Hole	160 V	100 W	ITE (Commercial) Railway	Isolated Module	90 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C
Recom Power RP100H-11015SRW/P-HC	57.9 mm	2.28 in	2.4 in	24.13 mm	61 mm	24.1 mm	6.7 A	3000 V	15 V	43 V	Half Brick	Through Hole	160 V	100 W	ITE (Commercial) Railway	Isolated Module	91 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C
Recom Power RP100H-4824SRW/P-HC	57.9 mm	2.28 in	2.4 in	24.13 mm	61 mm	24.1 mm	4.2 A	2250 VDC	24 V	16.5 V	Half Brick	Through Hole	75 V	100 W	ITE (Commercial) Railway	Isolated Module	90 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C
Recom Power RP100H-4812SRW/P-HC	57.9 mm	2.28 in	2.4 in	24.13 mm	61 mm	24.1 mm	8.4 A	2250 VDC	12 V	16.5 V	Half Brick	Through Hole	75 V	100 W	ITE (Commercial) Railway	Isolated Module	90 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C
Recom Power RP100H-2415SRW/N	57.9 mm				61 mm	12.1 mm	6.7 A	2250 VDC	15 V	9 V	Half Brick	Through Hole	36 V	100 W	ITE (Commercial) Railway	Isolated Module	91 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C	2.28 "	2.4 "	0.48 "
Recom Power RP100H-4815SRW/N	57.9 mm				61 mm	12.1 mm	6.7 A	2250 VDC	15 V	16.5 V	Half Brick	Through Hole	75 V	100 W	ITE (Commercial) Railway	Isolated Module	91 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C	2.28 "	2.4 "	0.48 "
Recom Power RP100H-11005SRW/P-HC	57.9 mm	2.28 in	2.4 in	24.13 mm	61 mm	24.1 mm	20 A	3000 V	5 V	43 V	Half Brick	Through Hole	160 V	100 W	ITE (Commercial) Railway	Isolated Module	93 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C
Recom Power RP100H-2424SRW/P-HC	57.9 mm	2.28 in	2.4 in	24.13 mm	61 mm	24.1 mm	4.2 A	2250 VDC	24 V	9 V	Half Brick	Through Hole	36 V	100 W	ITE (Commercial) Railway	Isolated Module	90 %	1	OCP OTP OVP Remote On/Off SCP UVLO	Half Brick	105 C	-40 °C
