DAC8550 Series

Catalog

DAC8550 DAC EVALUATION BOARD LABVIEW IDE

Part	DAC Type	Settling Time	Number of Bits	Number of DAC's	Utilized IC / Part	Sampling Rate (Per Second)	Supplied Contents	Data Interface	Output Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Reference Type	Architecture	INL/DNL (LSB)	Package / Case	Package / Case [custom]	Package / Case	Mounting Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Operating Temperature [Min]	Operating Temperature [Max]

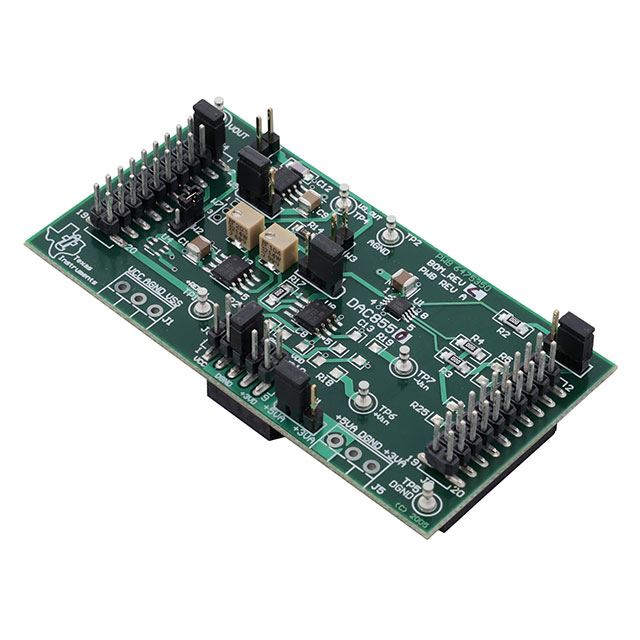

Texas Instruments DAC8550EVM	Voltage	8 µs	16	1	DAC8550	1 M	Board(s)	DSP SPI
Texas Instruments DAC8550IDGKTG4		10 µs	16					DSP SPI	Voltage - Buffered	5.5 V	2.7 V	External	String DAC	0.25 LSB 3 LSB	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	-40 °C	105 ░C
Texas Instruments DAC8550IBDGKR		10 µs	16					DSP SPI	Voltage - Buffered	5.5 V	2.7 V	External	String DAC	0.25 LSB 3 LSB	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	-40 °C	105 ░C
Texas Instruments DAC8550IBDGKTG4		10 µs	16					DSP SPI	Voltage - Buffered	5.5 V	2.7 V	External	String DAC	0.25 LSB 3 LSB	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	-40 °C	105 ░C
Texas Instruments DAC8550IDGKR		10 µs	16					DSP SPI	Voltage - Buffered	5.5 V	2.7 V	External	String DAC	0.25 LSB 3 LSB	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	-40 °C	105 ░C
Texas Instruments DAC8550IBDGKT		10 µs	16					DSP SPI	Voltage - Buffered	5.5 V	2.7 V	External	String DAC	0.25 LSB 3 LSB	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	-40 °C	105 ░C
Texas Instruments DAC8550IDGKT		10 µs	16					DSP SPI	Voltage - Buffered	5.5 V	2.7 V	External	String DAC	0.25 LSB 3 LSB	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	2.7 V	5.5 V	-40 °C	105 ░C
