TR9CG6000 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

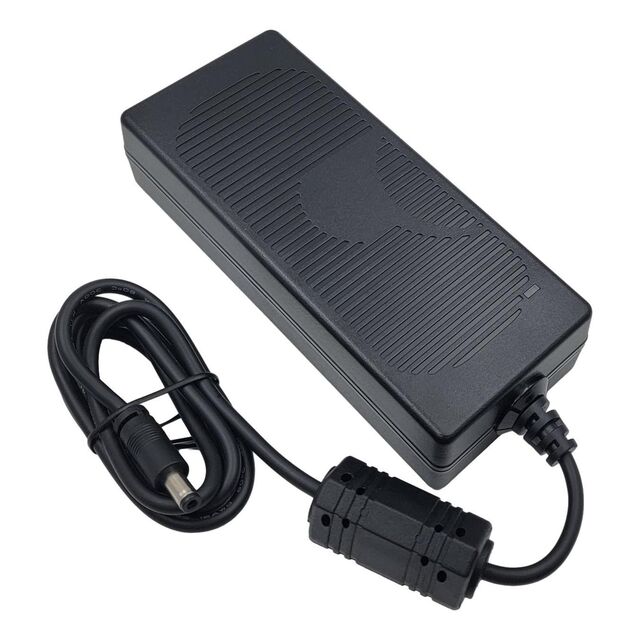

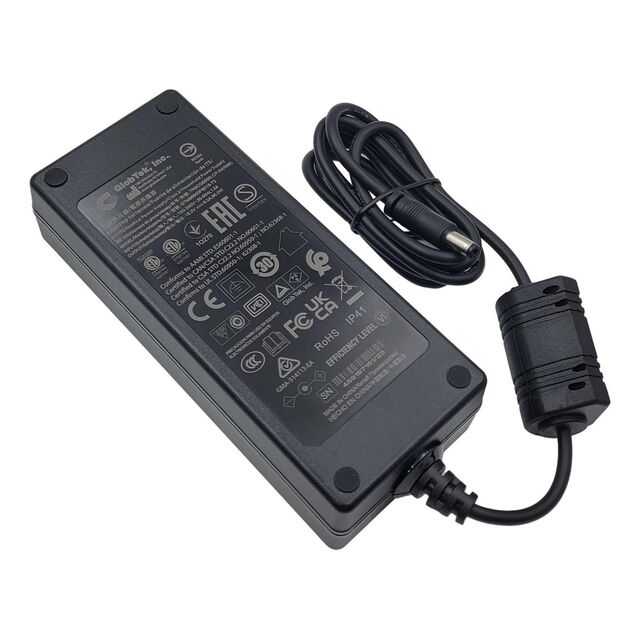

AC/DC DESKTOP ADAPTER 15V 90W
| Part | Input Connector | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Output Connector [diameter] | Output Connector | Output Connector [x] | Efficiency | Form | Standard Number | Polarization | Applications | Region Utilized | Power (Watts) | Current - Output (Max) [Max] | Approval Agency | Cord Length | Cord Length | Voltage - Output | Input Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | No Load Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | IEC 320-C14 | 40 °C | -10 °C | 264 VAC | 90 VAC | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | CoC Tier 1 Level VI | Desktop (Class I) | 60335-1 60601-1 60950-1 62368-1 | Positive Center | Household Appliances ITE (Commercial) Medical | International | 90 W | 6 A | CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UkrSEPRO VCCI | 1.2 m | 47.2 in | 15 V | Cord (Sold Separately) | 34 mm | 62.8 mm | 149.4 mm | 2.47 " | 5.88 " | 1.34 " | 150 mW |
