56K101 Series
Manufacturer: Rosenberger
Beta
⌘K

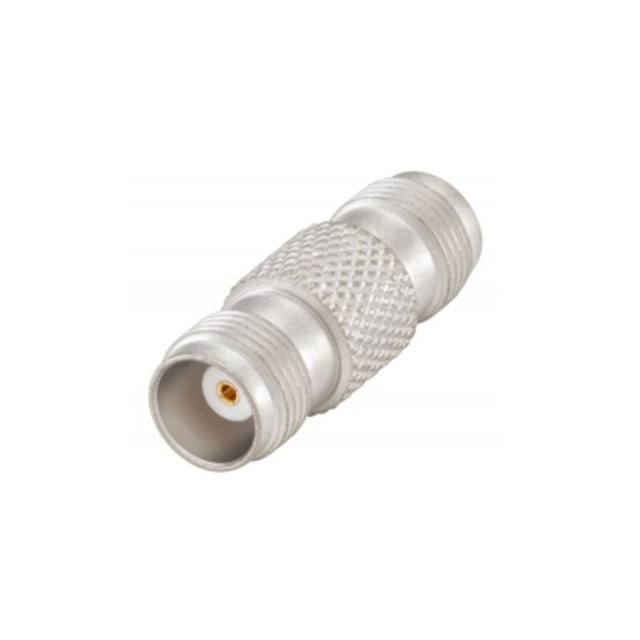

CONN ADAPT JACK-JACK TNC 50 OHM
| Part | Body Material | Center Contact Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Mating Cycles | Body Finish | Impedance | Center Contact Plating | Frequency - Max [Max] | Convert From (Adapter End) | Adapter Series | Mounting Type | Conversion Type | Adapter Type | Convert To (Adapter End) | Style | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | Bronze | Polytetrafluoroethylene (PTFE) | 85 °C | -45 °C | 0.05 dB | 500 | White Bronze | 50 Ohms | Gold | 10 GHz | Female Socket TNC Jack | TNC to TNC | Free Hanging (In-Line) | Same Series | Jack to Jack | Female Socket TNC Jack | Straight | Female to Female |
