337-058 Series
Manufacturer: EDAC Inc.
Beta
⌘K

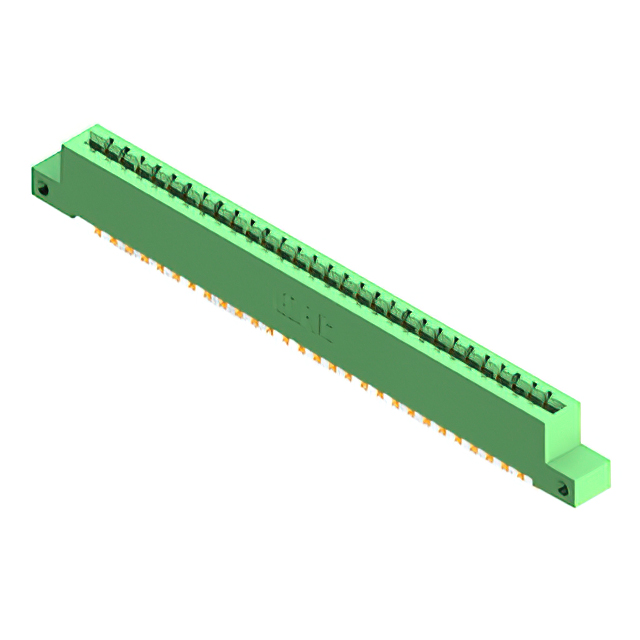

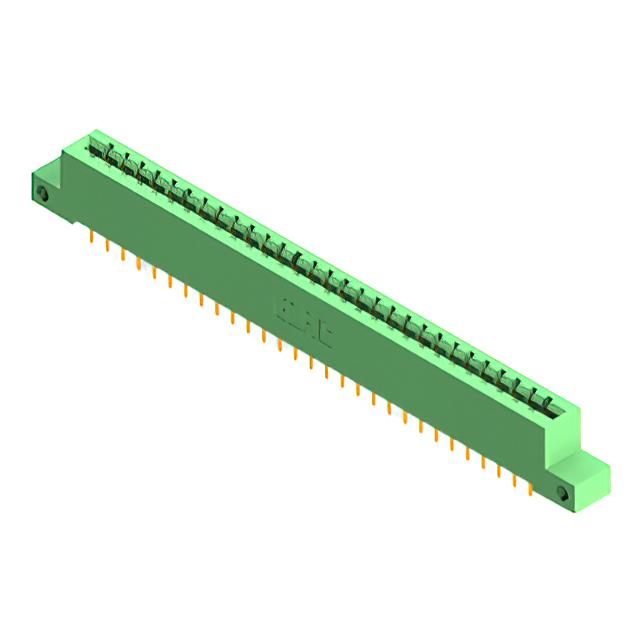

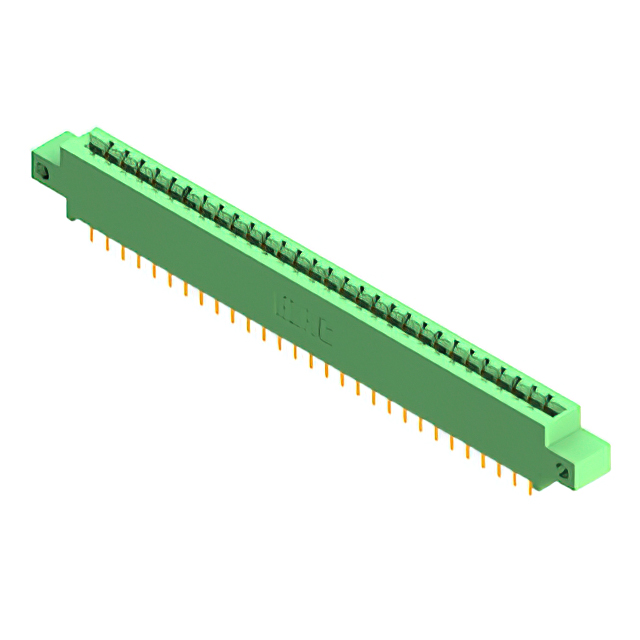

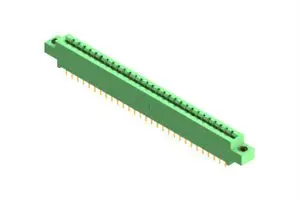

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Card Type | Gender | Pitch | Pitch | Flange Feature | Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Rows [custom] | Number of Positions | Color | Mounting Type | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | M3 Threaded Insert Top Mount Opening | Solder | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Through Hole | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | Solder | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Through Hole | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.25 mm | 0.128 " | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Right Angle Through Hole | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | Side Mount Opening Unthreaded | Solder | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Through Hole | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | M3 Threaded Insert Top Mount Opening | Solder | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Through Hole | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | Flush Mount Side Opening Unthreaded | Wire Wrap | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Through Hole | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | Flush Mount Side Opening Unthreaded | Solder | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Through Hole | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.25 mm | 0.128 " | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | Flush Mount Side Opening Unthreaded | Solder Eyelet(s) | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Board Edge Straddle Mount | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 3.25 mm | 0.128 " | Card Extender |

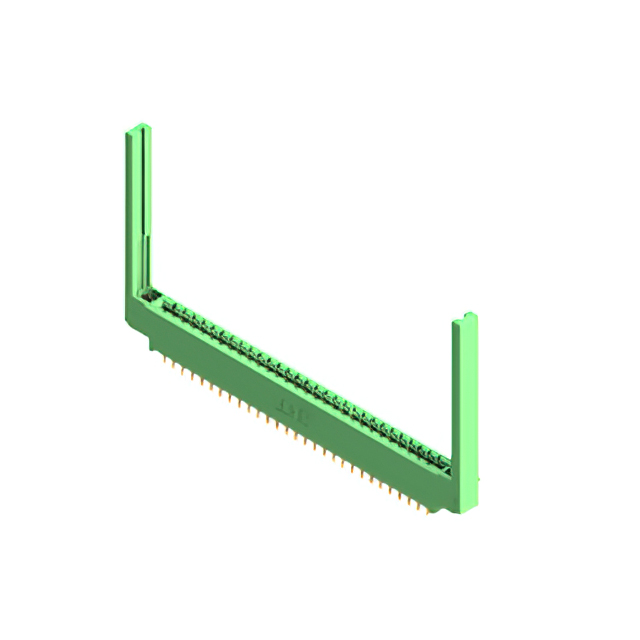

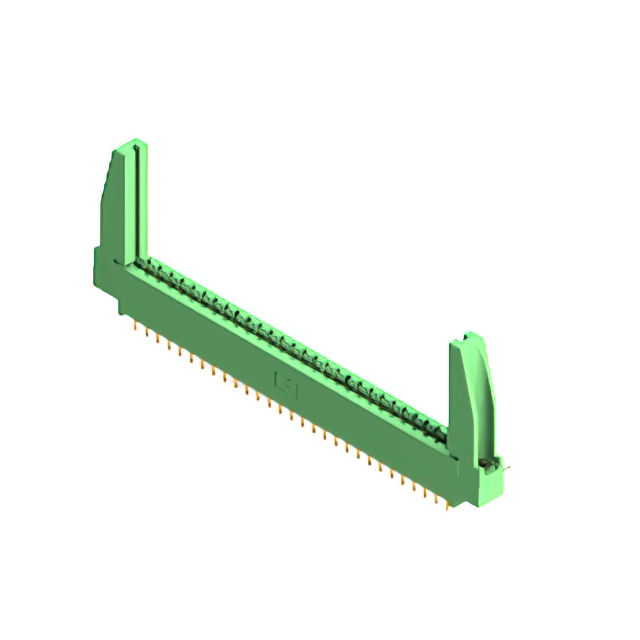

 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Right Angle Through Hole | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Card Guides | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Gold | 0.25 Ám | 10 Áin | Dual | -40 C | 105 ░C | Copper Alloy | 2 | 58 | Green | Through Hole | 29 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Card Guides |
