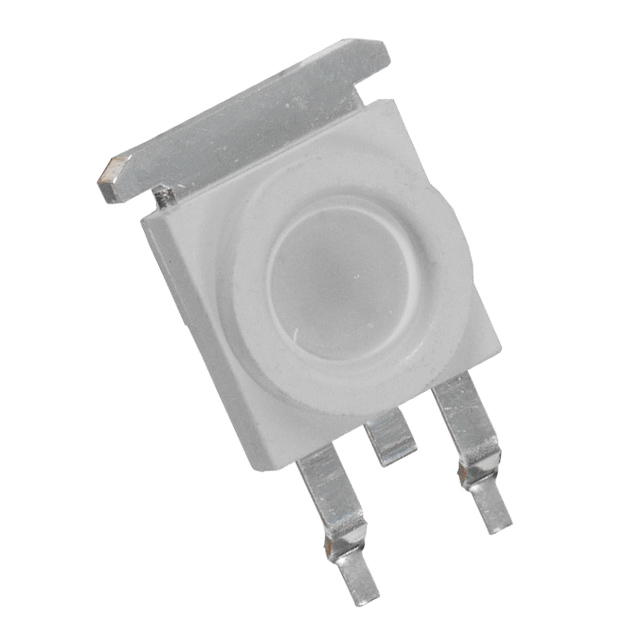

SML-LX1610 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED TITANBRITE BLU 470NM SMD

Part	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Luminous Flux @ Current/Temperature	Mounting Type	Viewing Angle	Color	Supplier Device Package	Package / Case	Temperature - Test	Wavelength	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test	CCT (K)	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Lumens/Watt @ Current - Test [custom]	Current - Max [custom]	Current - Max [custom]	Current - Max [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
Lumex Opto/Components Inc. SML-LX1610USBC/A	350 mA	3 V	350 mA	8.5 mm	0.335 "	0.335 in	8.5 mm	0.13 in	3.3 mm	20 lm	Surface Mount	110 °	Blue	SMD	DPAK (2 Leads + Tab) SC-63 TO-252-3	25 °C	470 nm	19 lm/W
Lumex Opto/Components Inc. SML-LX1610UWC/A	350 mA	3.5 V	350 mA	10 mm	0.417 in	0.394 in	10.6 mm	0.13 in	3.3 mm		Surface Mount	110 °	Cool White		DPAK (2 Leads + Tab) SC-63 TO-252-3			24 lm/W	30 lm	6000 K
Lumex Opto/Components Inc. SML-LX1610RGBW/A		2.1 V 3.5 V 3.5 V		8.5 mm	0.335 "	0.335 in	8.5 mm	0.13 in	3.3 mm		Surface Mount	110 °	Blue Green Red	SMD	DPAK (2 Leads + Tab) SC-63 TO-252-3	25 °C	470 nm 525 nm 626 nm				25 lm	25 lm	8 lm	20 lm/W	7 lm/W	40 lm/W	300 mA	350 mA	350 mA	350 mA	350 mA	300 mA
Lumex Opto/Components Inc. SML-LX1610SIC/A	350 mA	2.1 V	350 mA	8.5 mm	0.335 "	0.335 in	8.5 mm	0.13 in	3.3 mm		Surface Mount	110 °	Red	SMD	DPAK (2 Leads + Tab) SC-63 TO-252-3	25 °C	625 nm
