172718 Series

Mini-Fit TPA2/Sigma Female Crimp Terminal, Brass, Pre-Plated Tin (Sn), 24-22 AWG, 1.65-2.38mm Insulation Diameter, Reel

Manufacturer: Molex

Catalog

Mini-Fit TPA2/Sigma Female Crimp Terminal, Brass, Pre-Plated Tin (Sn), 24-22 AWG, 1.65-2.38mm Insulation Diameter, Reel

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Pin or Socket	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Type
Molex 1727186111	98.4 µin	2.5 µm	Crimp	Socket	Tin	24 AWG	22 AWG	Stamped
Molex 1727184111	98.4 µin	2.5 µm	Crimp	Socket	Tin	20 AWG	17.5 AWG	Stamped
Molex 1727185112	98.4 µin	2.5 µm	Crimp	Socket	Tin	24 AWG	22 AWG	Stamped
Molex 1727186122	98.4 µin	2.5 µm	Crimp	Socket	Tin	24 AWG	22 AWG	Stamped

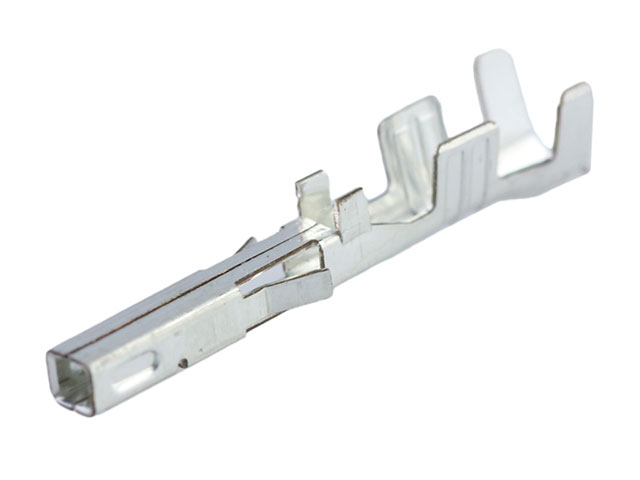

Molex 1727186112	98.4 µin	2.5 µm	Crimp	Socket	Tin	24 AWG	22 AWG	Stamped
Molex 1727183112	98.4 µin	2.5 µm	Crimp	Socket	Tin	20 AWG	17.5 AWG	Stamped
Molex 1727185122	98.4 µin	2.5 µm	Crimp	Socket	Tin	24 AWG	22 AWG	Stamped
Molex 1727184122	98.4 µin	2.5 µm	Crimp	Socket	Tin	20 AWG	17.5 AWG	Stamped

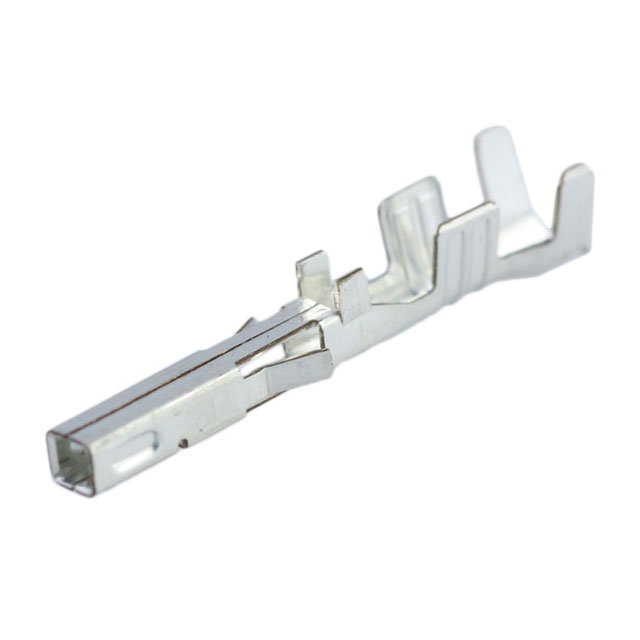

Molex 1727183111	98.4 µin	2.5 µm	Crimp	Socket	Tin	20 AWG	17.5 AWG	Stamped
Molex 1727183122	98.4 µin	2.5 µm	Crimp	Socket	Tin	20 AWG	17.5 AWG	Stamped

Mini-Fit TPA2/Sigma Female Crimp Terminal, Brass, Pre-Plated Tin (Sn), 24-22 AWG, 1.65-2.38mm Insulation Diameter, Reel
