8465MN Series
Manufacturer: Belden Inc.
Beta
⌘K

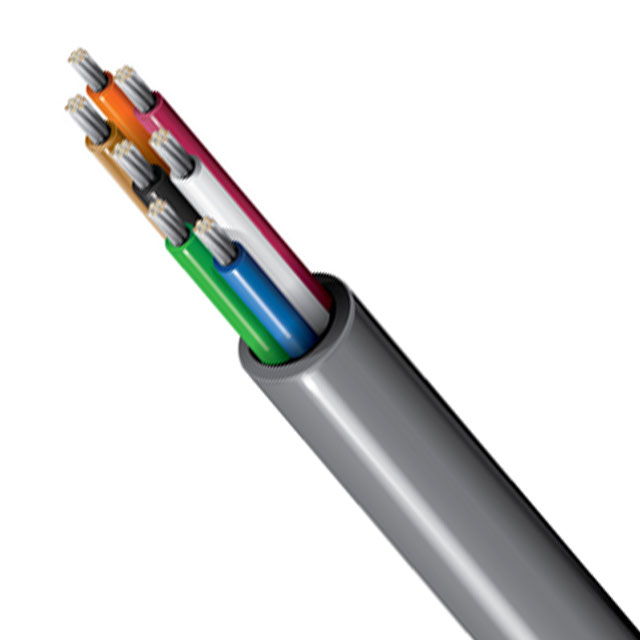

CABLE 5COND 18AWG GRAY
| Part | Conductor Material | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket Color | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Ratings | Usage | Wire Gauge | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 304.8 m | 1000 ft | 80 °C | -20 ░C | 41 | 34 | 5 | Gray | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.406 mm | 0.016 in | Polypropylene (PP) | UL Style 2937 | Audio Control Instrumentation | 18 AWG | 300 VDC |
Belden Inc. | Copper Tinned | 304.8 m | 1000 ft | 80 °C | -20 ░C | 41 | 34 | 5 | Blue | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.406 mm | 0.016 in | Polypropylene (PP) | UL Style 2937 | Audio Control Instrumentation | 18 AWG | 300 VDC |
Belden Inc. | Copper Tinned | 304.8 m | 1000 ft | 80 °C | -20 ░C | 41 | 34 | 5 | Yellow | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 0.406 mm | 0.016 in | Polypropylene (PP) | UL Style 2937 | Audio Control Instrumentation | 18 AWG | 300 VDC |
