000506 Series
Manufacturer: Molex
Beta
⌘K

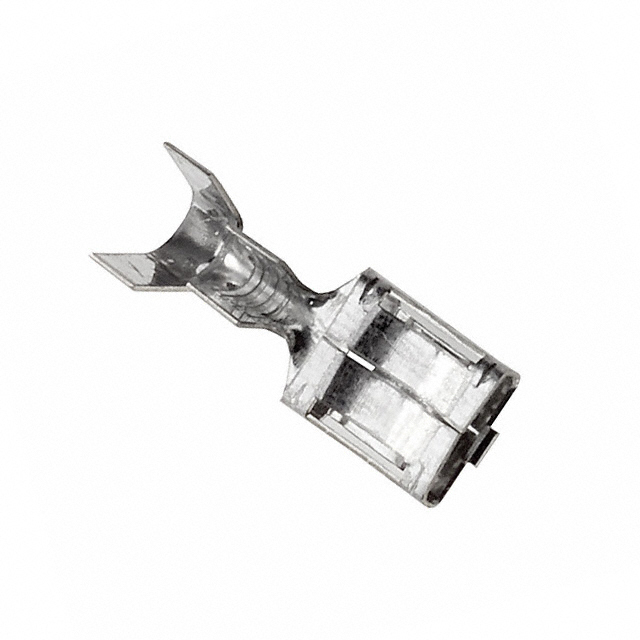

CONN QC RCPT 14-22AWG 0.187
| Part | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Mounting Type | Terminal Type | Contact Material | Tab Length | Tab Length | Gender | Contact Finish | Insulation | Length - Overall [x] | Length - Overall [x] | Termination | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width [x] | Tab Width [x] | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.79 mm | 0.031 " | Free Hanging (In-Line) | Flat Blade | Brass | 0.275 in | 6.99 mm | Female | Tin | Non-Insulated | 0.63 in | 16 mm | Crimp | 14 AWG | 22 AWG | 0.187 in | 4.75 mm | 0.02 in | 0.51 mm |
