S40B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

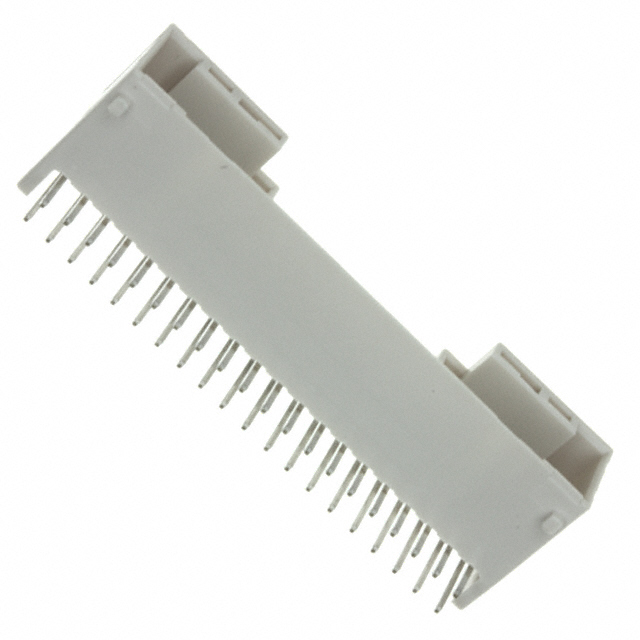

CONN HEADER R/A 40POS 2MM
| Part | Number of Positions | Insulation Material | Insulation Color | Features | Voltage Rating | Number of Positions Loaded | Insulation Height | Insulation Height | Contact Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Style | Material Flammability Rating | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Shrouding | Fastening Type | Mounting Type | Number of Rows [custom] | Contact Shape | Pitch - Mating | Pitch - Mating | Termination | Connector Type | Contact Material | Row Spacing - Mating | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 40 | Glass Filled Nylon 6/6 Polyamide (PA66) | Natural | Board Guide | 250 V | All | 0.335 " | 8.51 mm | Male Pin | 3 A | 85 °C | -25 °C | Board to Cable/Wire | UL94 V-0 | Tin | 0.118 in | 3 mm | Shrouded - 4 Wall | Latch Holder | Right Angle Through Hole | 2 | Square | 0.079 " | 2 mm | Solder | Header | Copper Alloy | 2 mm | 0.079 in |
