892-021 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 21POS 0.100

Part	Material - Insulation	Termination Rows	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish	Read Out	Contact Type	Contact Material	Color	Pitch	Pitch	Number of Positions/Bay/Row [custom]	Card Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Termination	Number of Rows	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-021-521-112	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Solder	1	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-021-524-108	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Solder	1	4-40 Flush Mount Threaded Insert Top Opening

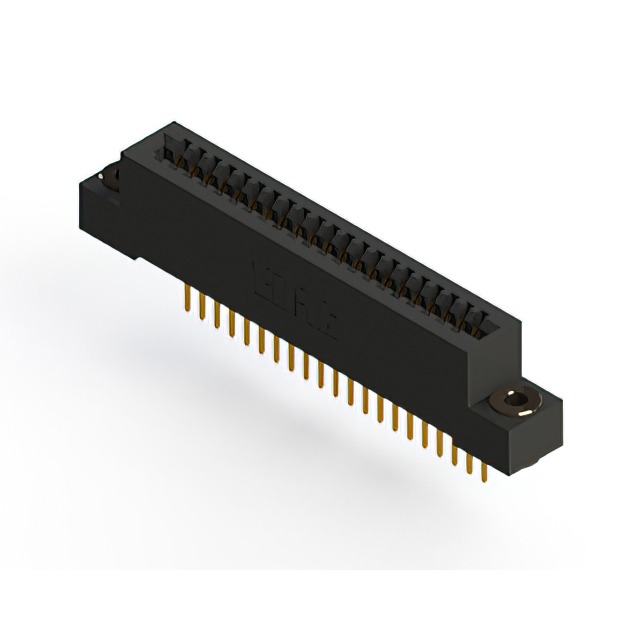

EDAC Inc. 892-021-523-103	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Solder	1	Floating Bobbin Flush Mount	0.116 "	2.95 mm
EDAC Inc. 892-021-541-101	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Wire Wrap	1
EDAC Inc. 892-021-524-103	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Solder	1	Floating Bobbin Flush Mount	0.116 "	2.95 mm

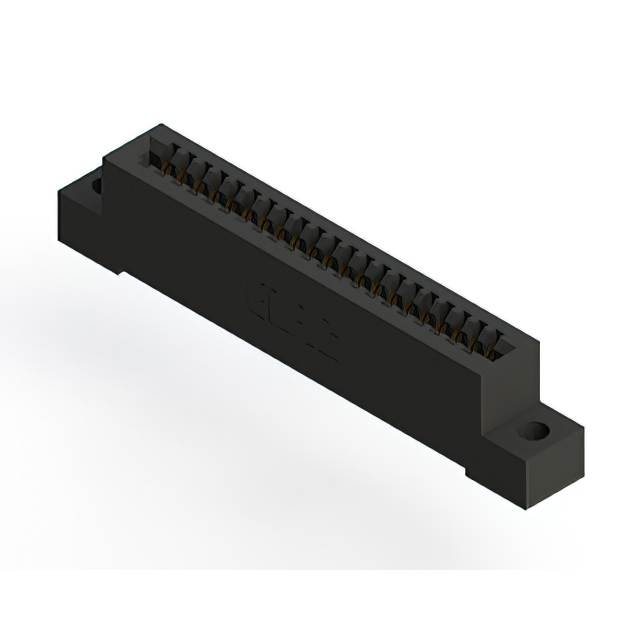

EDAC Inc. 892-021-524-104	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Solder	1	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 892-021-541-107	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Wire Wrap	1	Flush Mount M3 Threaded Insert Top Opening

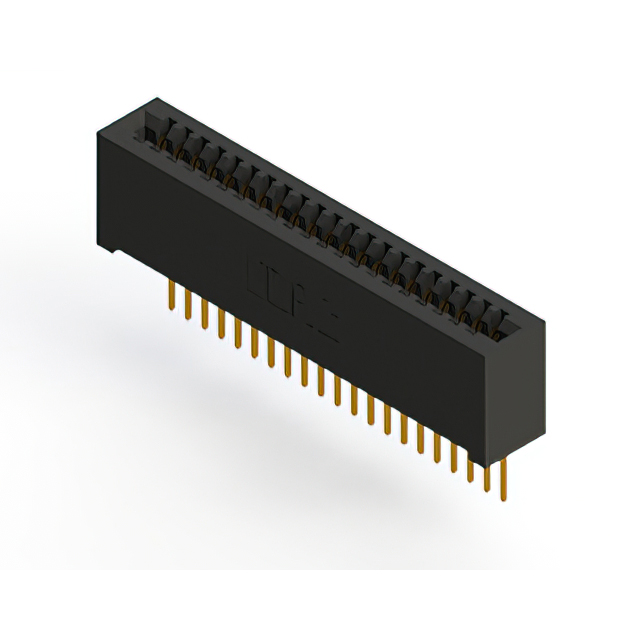

EDAC Inc. 892-021-523-101	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Solder	1
EDAC Inc. 892-021-541-104	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Wire Wrap	1	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 892-021-544-104	Polyphenylene Sulfide (PPS)	1	Female	125 °C	-40 C	Through Hole	Gold	Single	Cantilever	Copper Alloy	Black	0.1 "	2.54 mm	21	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	21	Wire Wrap	1	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
