28346 Series

Catalog

RELAY GEN PURPOSE DPDT 10A 24V

Part	Coil Resistance	Contact Rating (Current)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Load - Max Switching	Contact Form	Relay Type	Switching Voltage	Coil Type	Termination Style	Coil Current	Coil Voltage	Release Time	Operate Time	Features	Load - Max Switching [Max]	Switching Voltage [Max]

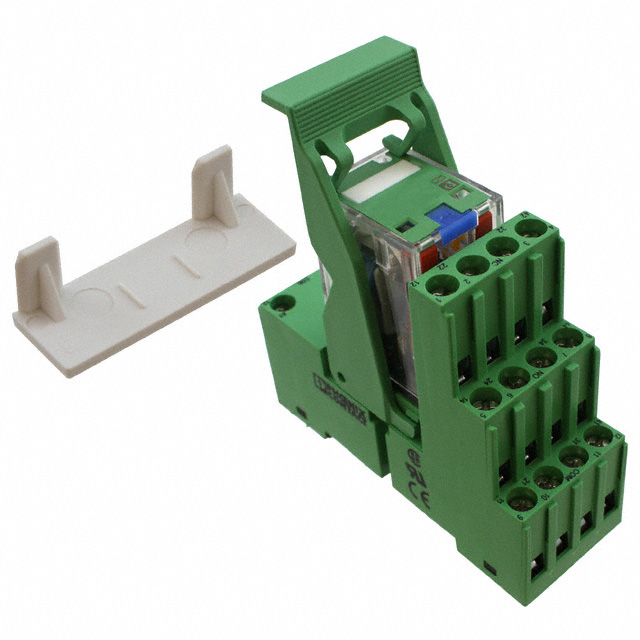

Phoenix Contact 2834643	632 Ohms	10 A	Silver (Ag)	-25 °C	60 °C	DIN Rail	1250 W 2500 VA	DPDT (2 Form C)	General Purpose	125 VDC 250 VAC	Non Latching	Screw Terminal	38 mA	24 VDC	5 ms	13 ms	Diode Lighted Indicator Socket Included

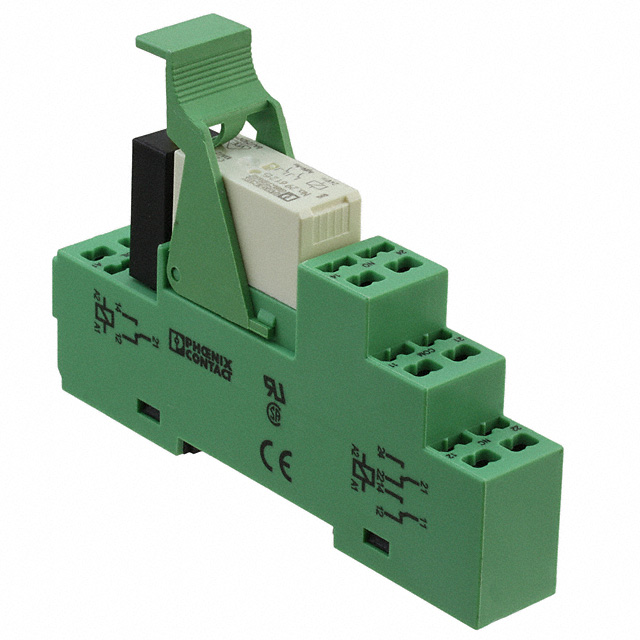

Phoenix Contact 2834601	1263 Ohms	8 A	Gold (Au) Silver Nickel (AgNi)	-25 °C	60 °C	DIN Rail		DPDT (2 Form C)	General Purpose	250 VAC 250 VDC	Non Latching	Spring Terminal	19 mA	24 VDC	10 ms	8 ms	Diode Lighted Indicator Socket Included

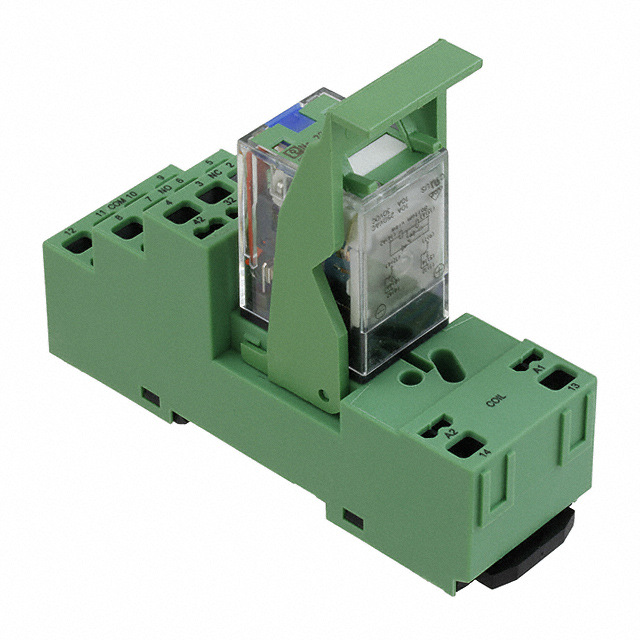

Phoenix Contact 2834685	632 Ohms	10 A	Silver (Ag)	-25 °C	60 °C	DIN Rail		DPDT (2 Form C)	General Purpose		Non Latching	Spring Terminal	38 mA	24 VDC	5 ms	13 ms	Diode Lighted Indicator Socket Included	2500 VA	250 VAC

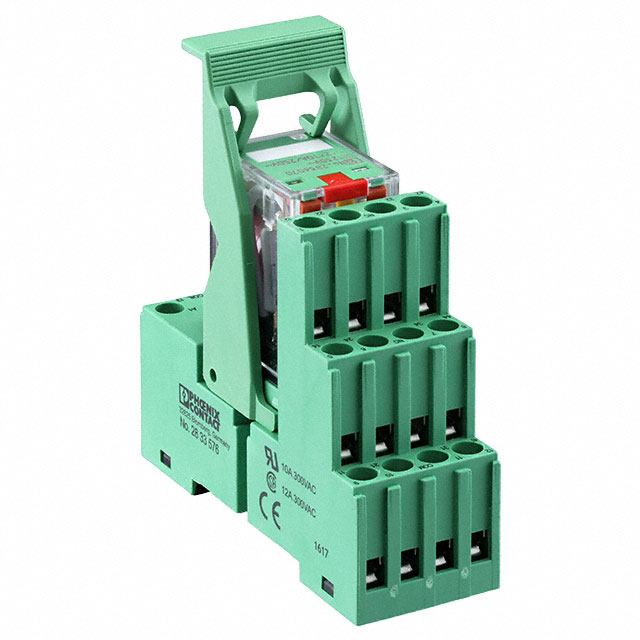

Phoenix Contact 2834672	57.5 kOhms	10 A	Silver (Ag)	-25 °C	60 °C	DIN Rail		DPDT (2 Form C)	General Purpose	250 VAC 250 VDC	Non Latching	Screw Terminal	4 mA	230 VAC	12 ms	10 ms	Lighted Indicator Socket Included Varistor

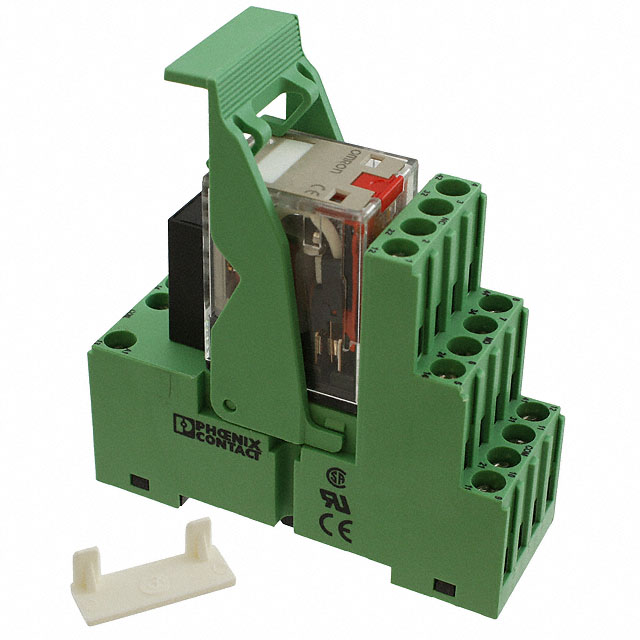

Phoenix Contact 2834669	13.33 kOhms	10 A	Silver (Ag)	-25 °C	60 °C	DIN Rail	1250 W 2500 VA	DPDT (2 Form C)	General Purpose	125 VDC 250 VAC	Non Latching	Screw Terminal	9 mA	120 VAC	12 ms	10 ms	Lighted Indicator Socket Included Varistor
Phoenix Contact 2834627	17.1 kOhms	8 A	Gold (Au) Silver Nickel (AgNi)	-25 °C	60 °C	DIN Rail		DPDT (2 Form C)	General Purpose	250 VAC 250 VDC	Non Latching	Spring Terminal	7 mA	120 VAC	16 ms	12 ms	Lighted Indicator Socket Included Varistor
Phoenix Contact 2834614	923.08 Ohms	8 A	Gold (Au) Silver Nickel (AgNi)	-25 °C	60 °C	DIN Rail		DPDT (2 Form C)	General Purpose	250 VAC 250 VDC	Non Latching	Spring Terminal	26 mA	24 VAC	14 ms	12 ms	Lighted Indicator Varistor
