8240 Series
Manufacturer: Belden Inc.
Beta
⌘K

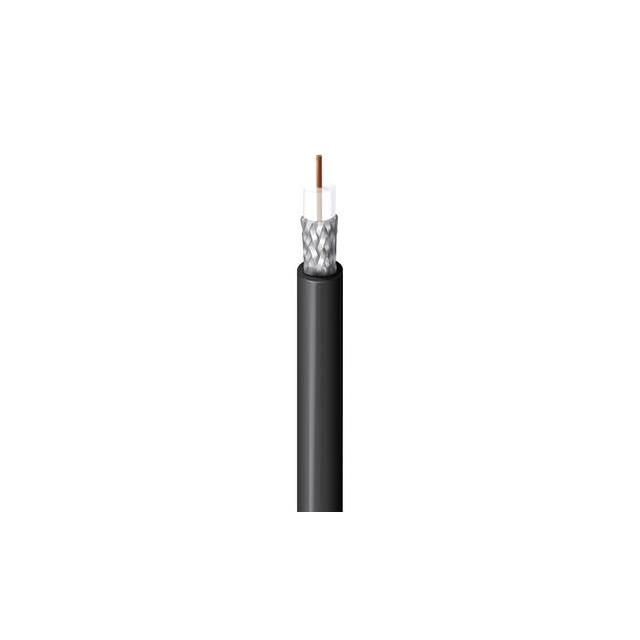

#20 PE BRD FRPVC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Shield Coverage | Shield Material | Usage | Cable Type | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Jacket (Insulation) Material | Cable Group | Jacket Color | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | -40 C | 75 ░C | 66 | 2.95 mm | 0.116 in | Copper Bare | 95 % | Copper Tinned | RF Signal | Coaxial | 20 AWG | Braid | 0.193 in | 4.9 mm | Solid | Poly-Vinyl Chloride (PVC) | RG-58 | Black | ||||
Belden Inc. | -40 C | 75 ░C | 66 | 2.95 mm | 0.116 in | Copper Bare | 95 % | Copper Tinned | RF Signal | Coaxial | 20 AWG | Braid | 0.193 in | 4.9 mm | Solid | Poly-Vinyl Chloride (PVC) | RG-58 | Black | 304.8 m | 1000 ft | ||
Belden Inc. | -40 C | 75 ░C | 66 | 2.95 mm | 0.116 in | Copper Bare | 95 % | Copper Tinned | RF Signal | Coaxial | 20 AWG | Braid | 0.193 in | 4.9 mm | Solid | Poly-Vinyl Chloride (PVC) | RG-58 | Black | 152.4 m | 500 ft | ||
 Belden Inc. | -40 C | 75 ░C | 66 | 2.95 mm | 0.116 in | Copper Bare | 95 % | Copper Tinned | RF Signal | Coaxial | 20 AWG | Braid | 0.193 in | 4.9 mm | Solid | Poly-Vinyl Chloride (PVC) | RG-58 | Black | 100 ' | 30.48 m |
