SC600 Series

Manufacturer: Quectel

Catalog

RF TXRX MOD BT NAV WIFISMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Serial Interfaces	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Frequency	Data Rate	Power - Output	RF Family/Standard	Mounting Type	Utilized IC / Part
Quectel SC600YJPPA-E53-TA0AA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600TEMPC-E56-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount	Qualcomm® Snapdragon MSM8953-B

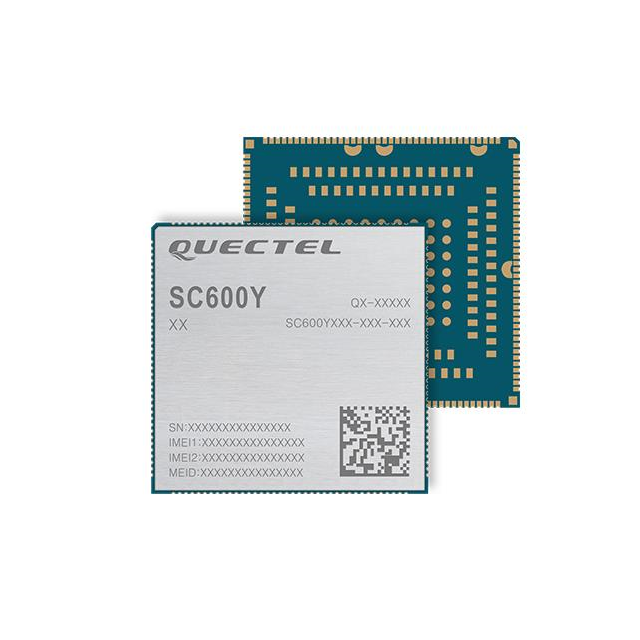

Quectel SC600YEMPA-E53-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount	Qualcomm® Snapdragon SDM450
Quectel SC600YWFNA-E53-UNNNA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600TNAPA-E53-TA0AA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600YNAPA-E53-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount	Qualcomm® Snapdragon SDM450
Quectel SC600YEMPA-E53-TA0AA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600YJPNA-E53-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600TEMPA-E53-TA0AA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount
Quectel SC600TJPPA-E53-UGADA	65 °C	-35 °C	Module	ADC GPIO I2C I2S SDIO SPI UART USB	802.11a/b/g/n/ac Beidou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 GLONASS GNSS GPS	4.4 V	3.55 V	Antenna Not Included	850 MHz 900 MHz 1800 MHz 1900 MHz	300 Mbps	33 dBm	Bluetooth Navigation WiFi	Surface Mount	Qualcomm® Snapdragon MSM8953-B
