N700A Series

Manufacturer: Shiu Li Technology Co., Ltd.

Catalog

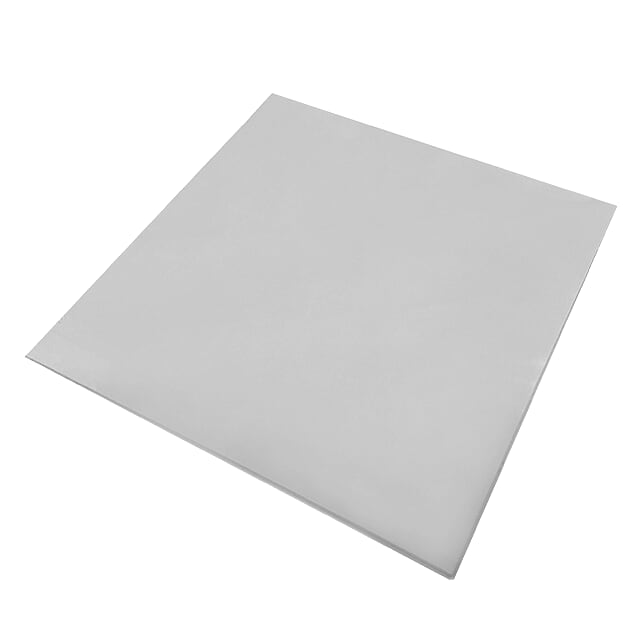

THERM PAD 160MMX160MM GRAY

Part	Storage/Refrigeration Temperature	Shelf Life	Shelf Life Start	Thermal Conductivity	Adhesive	Usage	Type	Color	Shape	Thickness	Thickness	Material	Outline [y]	Outline [x]	Thickness [custom]	Thickness [custom]	Thickness
Shiu Li Technology Co., Ltd. N700A-160-160-2.0	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square	0.079 in	2 mm	Non-Silicone	160 mm	160 mm
Shiu Li Technology Co., Ltd. N700A-320-320-4.0	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square	0.157 in	4 mm	Non-Silicone	320 mm	320 mm
Shiu Li Technology Co., Ltd. N700A-160-160-3.0	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square	0.118 in	3 mm	Non-Silicone	160 mm	160 mm
Shiu Li Technology Co., Ltd. N700A-160-160-1.0	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square	0.039 in	0.991 mm	Non-Silicone	160 mm	160 mm
Shiu Li Technology Co., Ltd. N700A-320-320-5.0	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square	0.197 in	5 mm	Non-Silicone	320 mm	320 mm
Shiu Li Technology Co., Ltd. N700A-160-160-5.0	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square	0.197 in	5 mm	Non-Silicone	160 mm	160 mm
Shiu Li Technology Co., Ltd. N700A-160-160-3.5	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square			Non-Silicone	160 mm	160 mm	0.138 in	3.5 mm
Shiu Li Technology Co., Ltd. N700A-320-320-2.5	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square	0.098 in	2.489 mm	Non-Silicone	320 mm	320 mm
Shiu Li Technology Co., Ltd. N700A-320-320-4.5	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square		0.177 in	Non-Silicone	320 mm	320 mm			4.5 mm
Shiu Li Technology Co., Ltd. N700A-320-320-3.0	Room Temperature	120 Months	Date of Shipment	1.5 W/m-K	Tacky - Both Sides	Thermally Conductive	Interface Pad Sheet	Gray	Square	0.118 in	3 mm	Non-Silicone	320 mm	320 mm
