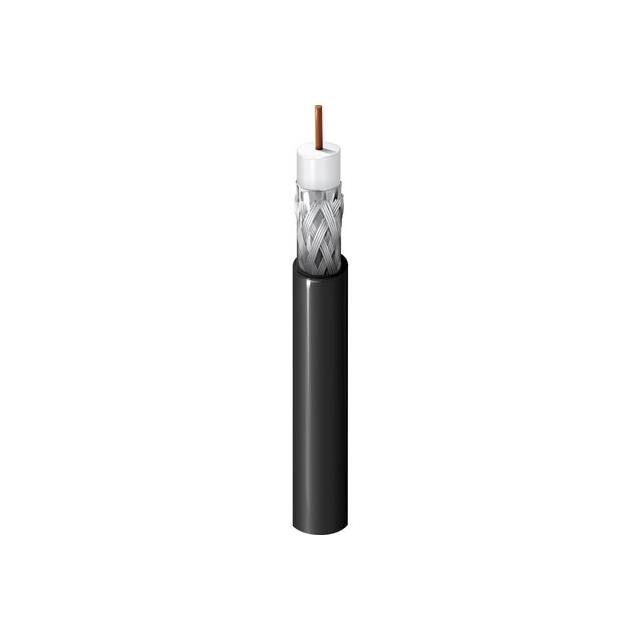

5399B5 Series
Manufacturer: Belden Inc.
Beta
⌘K
SERIES 6 COAX
| Part | VoP, Velocity of Propagation | Shield Material | Dielectric Material | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage [custom] | Wire Gauge | Jacket (Insulation) Material | Shield Type | Conductor Strand | Cable Group | Cable Type | Impedance | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 83 | Aluminum | Foam Polyethylene (FPE) | Copper Bare | 80 °C | -40 C | 0.18 in | 4.57 mm | 60 % 100 % | 18 AWG | Poly-Vinyl Chloride (PVC) | Braid Foil | Solid | RG-6 | Coaxial | 75 Ohms | 304.8 m | 1000 ft | 0.27 " | 6.86 mm | Black |
