T41324 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

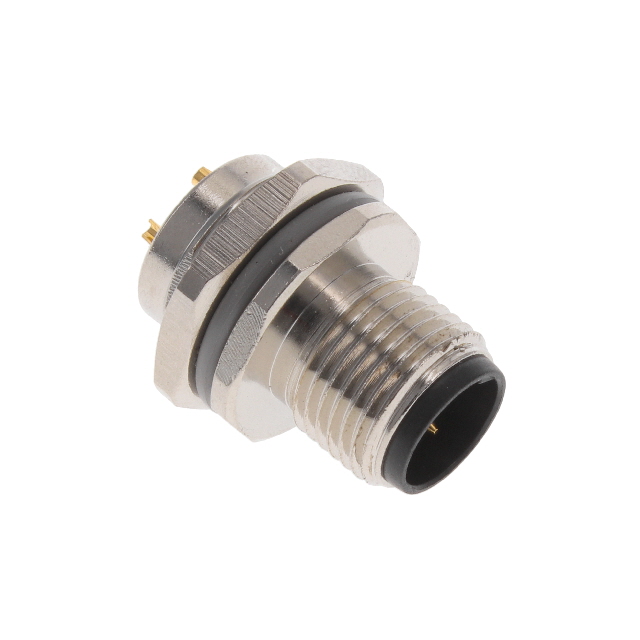

SENSOR CONNECTOR, M12, MALE, 4 POSITIONS, SOLDER PIN, STRAIGHT PANEL MOUNT
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Applications | Insert Material | Fastening Type | Primary Material | Contact Finish - Mating | Mounting Feature | Current Rating (Amps) | Shell Material | Shielding | Number of Positions | Ingress Protection | Connector Type | Voltage Rating | Material Flammability Rating | Mounting Type | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Color | Shell Size - Insert | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Copper Alloy | Industrial | Nylon 6/6 Polyamide (PA66) | Threaded | Metal | Gold | Bulkhead - Rear Side Nut | 4 A | Copper Alloy | Unshielded | 4 | IP67 - Dust Tight Waterproof | Receptacle Male Pins | 250 V | UL94 V-0 | Panel Mount | B | 85 °C | -40 C | Silver | M12-4 | Nickel |

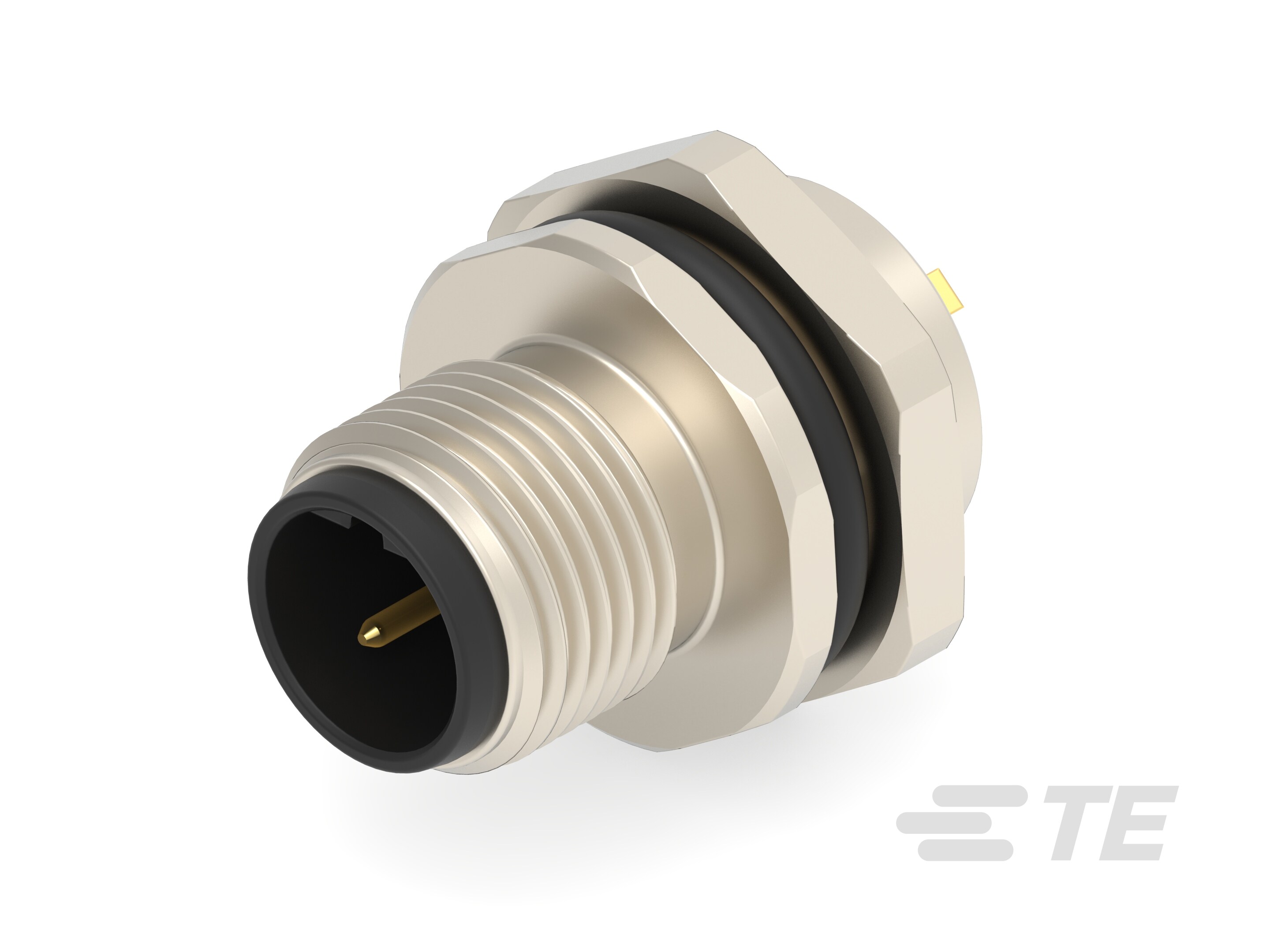

 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Copper Alloy | Industrial | Nylon 6/6 Polyamide (PA66) | Threaded | Metal | Gold | Bulkhead - Rear Side Nut | 4 A | Copper Alloy | Unshielded | 2 | IP67 - Dust Tight Waterproof | Receptacle Male Pins | 250 V | UL94 V-0 | Panel Mount | B | 85 °C | -40 C | Silver | M12-2 | Nickel |
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Copper Alloy | Industrial | Nylon 6/6 Polyamide (PA66) | Threaded | Metal | Gold | Bulkhead - Rear Side Nut | 4 A | Copper Alloy | Unshielded | 5 | IP67 - Dust Tight Waterproof | Receptacle Male Pins | 60 VDC | UL94 V-0 | Panel Mount | B | 85 °C | -40 C | Silver | M12-5 | Nickel |
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Copper Alloy | Industrial | Nylon 6/6 Polyamide (PA66) | Threaded | Metal | Gold | Bulkhead - Rear Side Nut | 4 A | Copper Alloy | Unshielded | IP67 - Dust Tight Waterproof | Receptacle Male Pins | 250 V | UL94 V-0 | Panel Mount | B | 85 °C | -40 C | Silver | M12-3 | Nickel |
