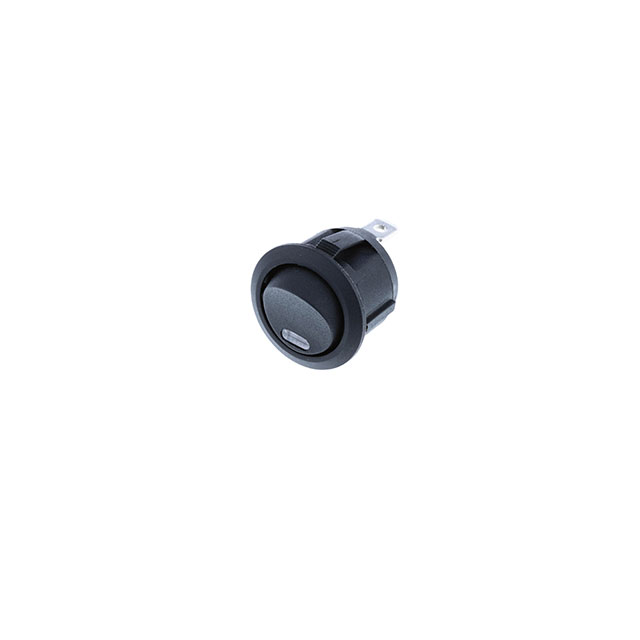

RA3-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPST 20A 14V
| Part | Electrical Life (Cycles) | Mechanical Life (Cycles) | Illumination Voltage (Nominal) | Actuator Type | Color - Actuator/Cap | Current Rating | Circuit | Operating Temperature (Max) | Operating Temperature (Min) | Switch Function | Quick Connect Size (0.187") | Termination Style | Mounting Type | Panel Cutout Diameter | Panel Cutout Shape | Color | Illumination Type | Voltage Rating - DC | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 10000 Cycles | 14 VAC/DC | Illuminated Round | Black | 20 A | SPST | 85 °C | -25 °C | On-Off | 0.187 in | Quick Connect | Panel Mount Snap-In | 20.2 mm | Circular | Red | LED | 14 V | No Marking |
 Switch Components | 6000 Cycles | 10000 Cycles | 14 VAC/DC | Illuminated Round | Black | 20 A | SPST | 85 °C | -25 °C | On-Off | 0.187 in | Quick Connect | Panel Mount Snap-In | 20.2 mm | Circular | Green | LED | 14 V | No Marking |
 Switch Components | 6000 Cycles | 10000 Cycles | 14 VAC/DC | Illuminated Round | Black | 20 A | SPST | 85 °C | -25 °C | On-Off | 0.187 in | Quick Connect | Panel Mount Snap-In | 20.2 mm | Circular | Amber | LED | 14 V | No Marking |
